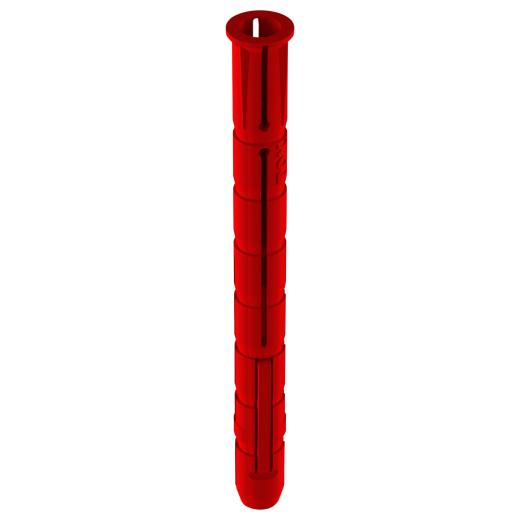

TOX Parallel expansion wall plug Bizeps 8x90 mm | 50 pieces
Product no.: T00910015
Properties

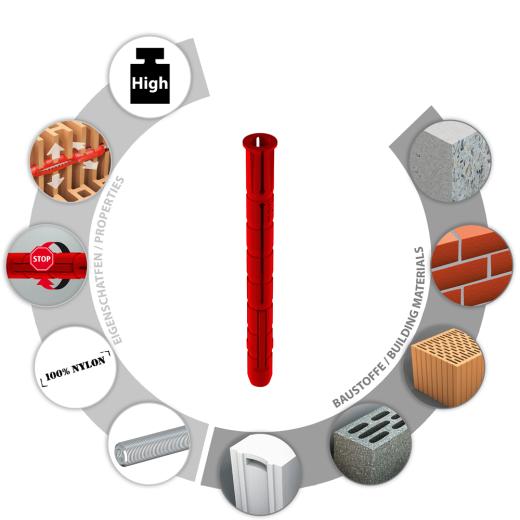

- Ideal for perforated brick (Poroton) and porous concrete (Ytong)
- Extremely high holding values
- Expands in different directions
- Rotors prevent rotation in the drill hole
- 100% nylon
- Long expansion area for secure anchoring
- Also suitable for metric threaded rods
- Multiple expansion by 2-part expansion elements which are offset by 90° with moving rotors and flexible wall plug neck
- Deep anchoring depth

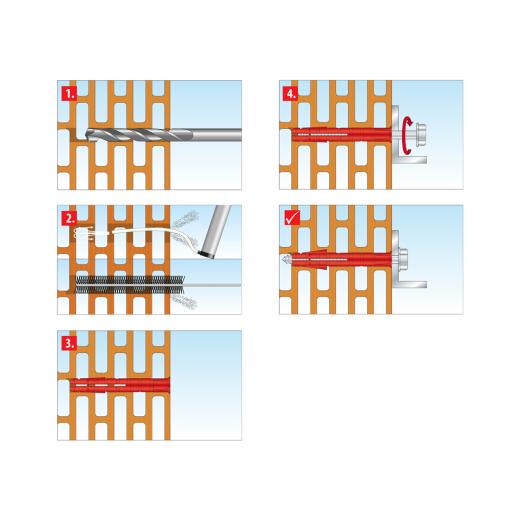

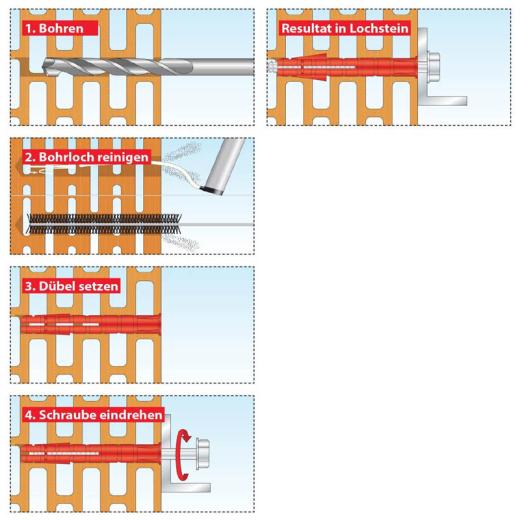

- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick in a rotary motion without impact to prevent webs in the perforated brick from breaking away
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned installation
- In solid brick with dense structure, select the smallest possible screw Ø
Technical data:
| Dowel diameter | 8 | [mm] | |
| Dowel length | 90 | [mm] | |
| Screw size | 5,0-6,0 | [ø mm] | |
| Screw length | ≤ 95mm + tfix | [mm] | |
| Drill hole diameter | do | 8 | [mm] |
| Min. drill hole depth | h1 | 100 | [mm] |
| Min. bolt penetration | hef | 90 | [mm] |
Price:
11,10 EUR
19 % VAT incl. excl. Shipping costs
0,22 EUR per piece
