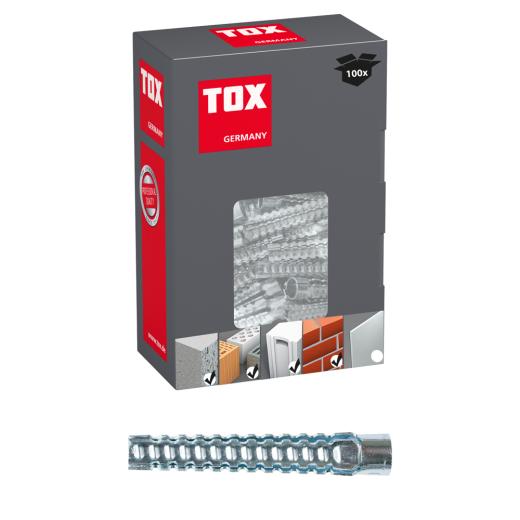

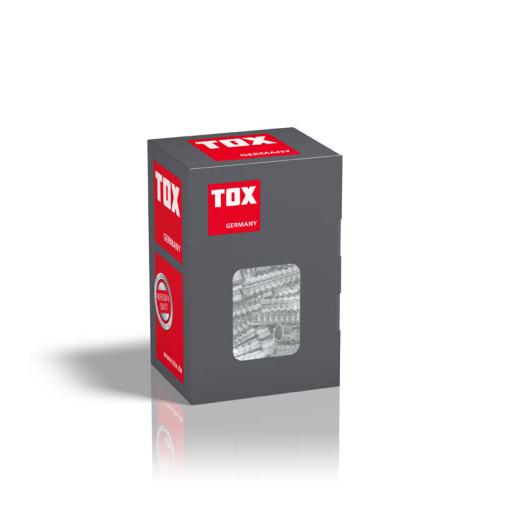

TOX Metal claw wall plug Tiger 10x60 mm | 100 pieces

Product no.: T039100051

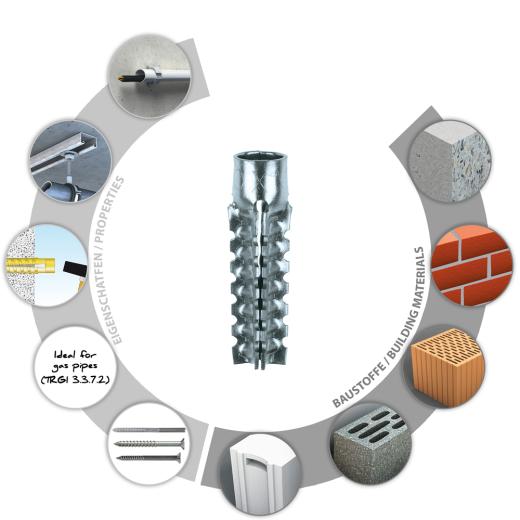

Properties

  • Perfect for gas pipes
  • Ideal for ceiling installation
  • Can be knocked into porous concrete PP2
  • Complies with technical specifications for gas pipes (TRGI 3.3.7.2)
  • Secure screw guidance
  • Suitable for wood screws, chipboard screws and hanger bolts

Description and field of application

  • 4-part expansion element with external cogs and rib-design inner geometry
  • Can be used with various substrates

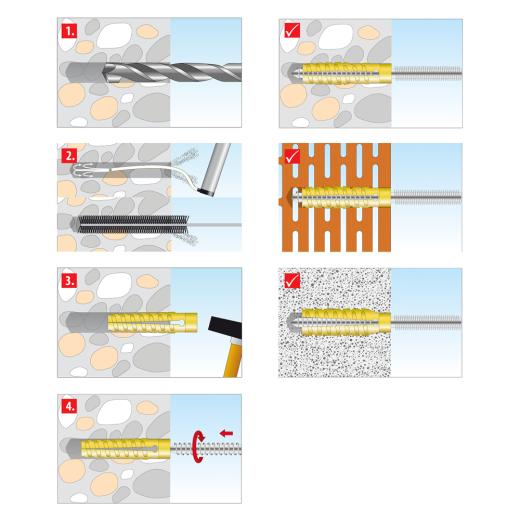

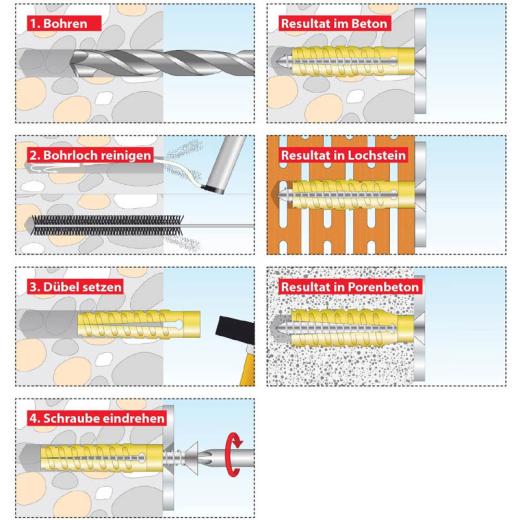

Processing and assembly

  • Can be knocked into porous concrete PP2 without pre-drilling
  • Drill into concrete and solid brick (building materials with high pressure resistance) using the largest possible drill indicated
  • Minimum screw length = wall plug length + fixture thickness + 5 mm
  • Pre-positioned installation



Technical data:

Dowel diameter 10 [mm]
Dowel length 60 [mm]
Screw size 8,0-10,0 [ø mm]
Screw length ≤ 65mm + tfix [mm]
Drill hole diameter do 12 [mm]
Min. drill hole depth h1 70 [mm]
Min. bolt penetration hef 60 [mm]

Price:

53,90 EUR

19 % VAT incl. excl. Shipping costs

0,54 EUR per piece
