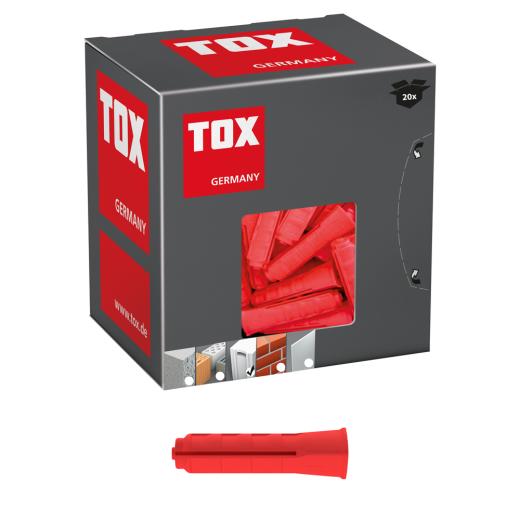

TOX Cellular concrete wall plug YTOX M12x60 mm | 20 pieces

Product no.: T096100061

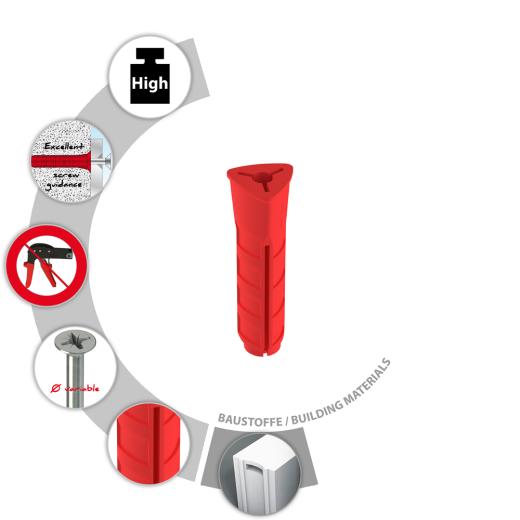

Properties

• Highest load-bearing values on the market
• No setting tools required
• Suitable for different screw diameters
• Very good anti-rotation lock thanks to special outer contour
• Excellent screw guidance

Description and field of application

• Triangular wall plug with 3-part expansion body and countersunk head
• 3 parts for almost perfect positive anchoring
• Ytox 10/55 can easily be knocked into porous concrete PP2

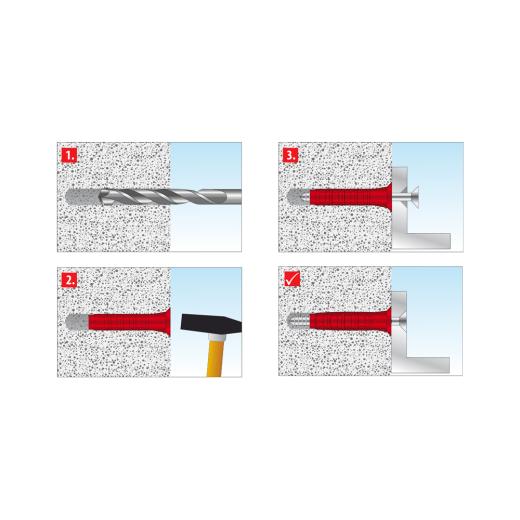

Processing and assembly

• Minimum screw length = wall plug length + fixture thickness + 5 mm
• Drill without impact
• Pre-positioned installation

---



Technical data:

Dowel diameter	12		[mm]
Dowel length	60		[mm]
Screw size	7,0-8,0		[ø mm]
Screw length	≤ 70mm + tfix		[mm]
Drill hole diameter	do	12	[mm]
Min. drill hole depth	h1	70	[mm]
Min. bolt penetration	hef	60	[mm]

Price:

11,30 EUR

19 % VAT incl. excl. Shipping costs

0,57 EUR per piece
