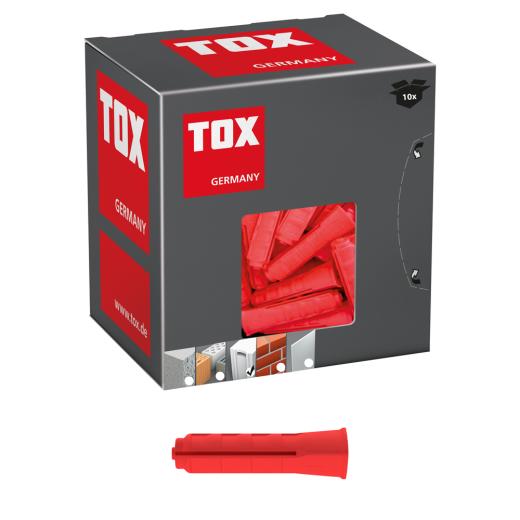

TOX Cellular concrete wall plug YTOX M14x75 mm | 10 pieces

Product no.: T096100081

Properties

• Highest load-bearing values on the market
• No setting tools required
• Suitable for different screw diameters
• Very good anti-rotation lock thanks to special outer contour
• Excellent screw guidance

Description and field of application

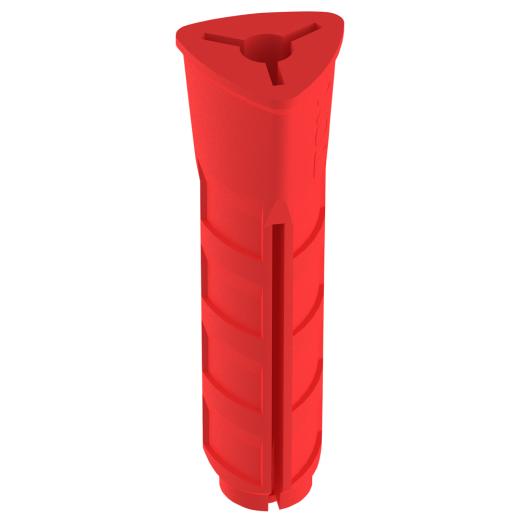

• Triangular wall plug with 3-part expansion body and countersunk head
• 3 parts for almost perfect positive anchoring
• Ytox 10/55 can easily be knocked into porous concrete PP2

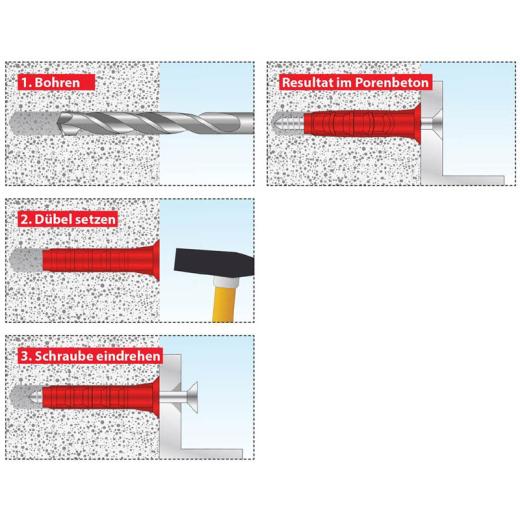

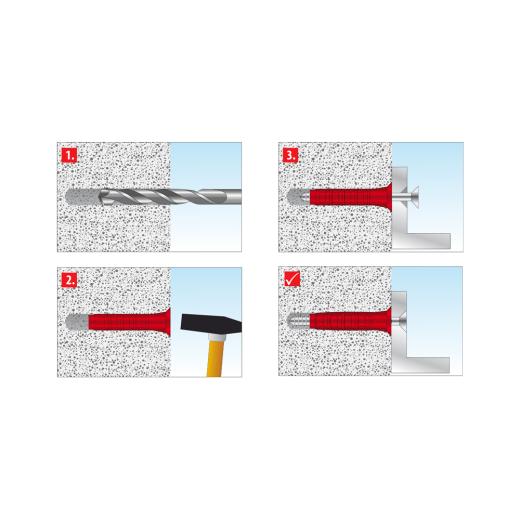

Processing and assembly

• Minimum screw length = wall plug length + fixture thickness + 5 mm
• Drill without impact
• Pre-positioned installation

---



Technical data:

Dowel diameter	14		[mm]
Dowel length	75		[mm]
Screw size	10,0		[ø mm]
Screw length	≤ 85mm + tfix		[mm]
Drill hole diameter	do	14	[mm]
Min. drill hole depth	h1	85	[mm]
Min. bolt penetration	hef	75	[mm]

Price:

10,30 EUR

19 % VAT incl. excl. Shipping costs

1,03 EUR per piece
