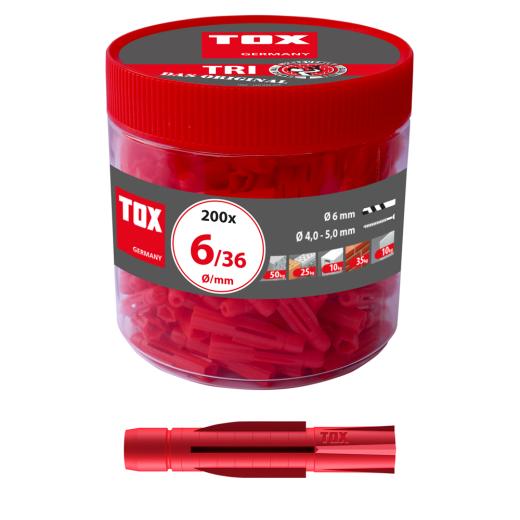

TOX All-purpose wall plug Tri 6x36 mm in round box | 200 pieces
Product no.: T010260031
Properties
- The original all-purpose wall plug – often copied but never matched

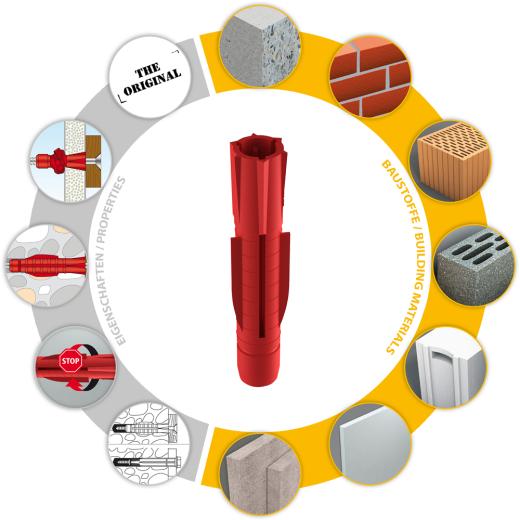

- Holds secure in almost all building materials
- Automatic knotting or expansion depending on the building material
- No rotation in the drill hole
- Pre-positioned and through installation
- 3-part wall plug element without wall plug cap
- Anti-rotation locks on the fixing neck prevent rotation in the building material
- Tri + screw: Countersunk screw with PZ drive

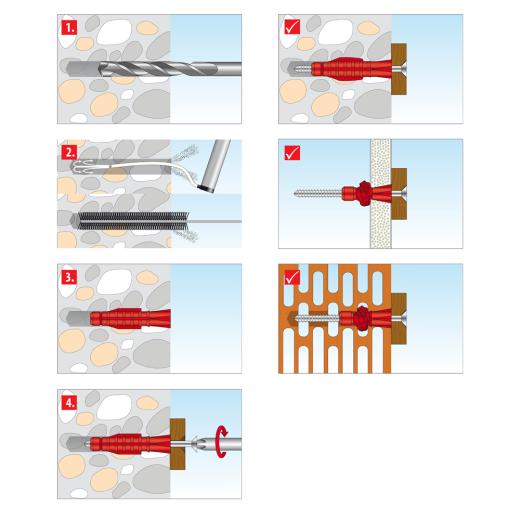

- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- The drill hole in gypsum plasterboard must be made with a wood or metal drill
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned and through installation possible
Technical data:
| Dowel diameter | 6 | [mm] | |
| Dowel length | 36 | [mm] | |
| Screw size | 4,0-5,0 | [ø mm] | |
| Screw length | ≤ 40mm + tfix | [mm] | |
| Drill hole diameter | do | 6 | [mm] |
| Min. drill hole depth | h1 | 50 | [mm] |
| Min. bolt penetration | hef | 36 | [mm] |
Price:
17,30 EUR
19 % VAT incl. excl. Shipping costs
0,09 EUR per piece
