Product no.: T021101101

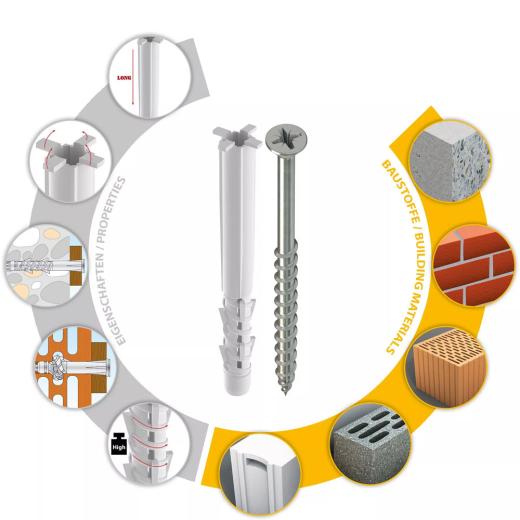

Properties
- Extended shaft for special frame wall plug applications
- Deep anchoring in porous concrete
- Holds secure in almost all building materials
- Automatic knotting or expansion depending on the building material
- Wide range of applications thanks to different shaft lengths
- Removable wall plug cap prevents slippage into the drill hole
- Spiral shape allows high load-bearing values
Description and field of application

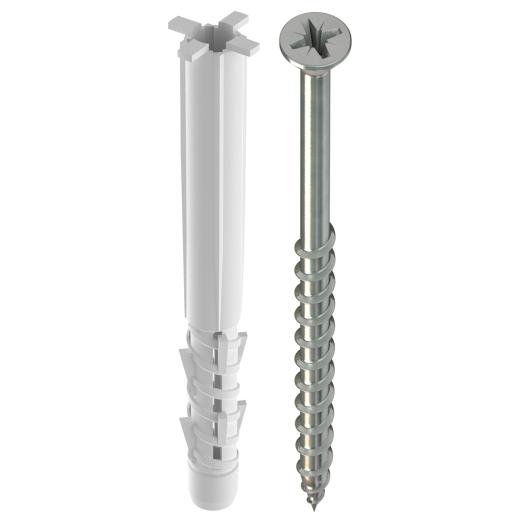

- All-purpose wall plug for virtually all building materials
- Spiral shaped expansion element
- Extra long shaft lengths for bridging thick, non-load bearing layers
- Removable wall plug capAnti-rotation locks on the fixing neck prevent rotation in the building material
- Tetrafix XL+ screw: Screw with PZ drive

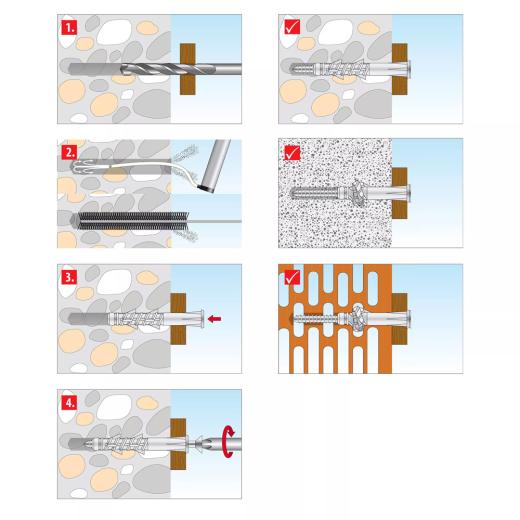

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- The drill hole in gypsum plasterboard must be made with a wood or metal drill
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned and through installation possible
Technical data:
| Dowel diameter |
8 |
[mm] |
| Dowel length |
80 |
[mm] |
| Screw size |
73181290 |
[ΓΈ mm] |
| Screw length |
- |
[mm] |
| Drill hole diameter |
do |
5 |
[mm] |
| Min. drill hole depth |
h1 |
90 |
[mm] |
| Min. bolt penetration |
hef |
50 |
[mm] |

Price:
11,50 EUR
19 % VAT incl. excl. Shipping costs
0,46 EUR per piece
