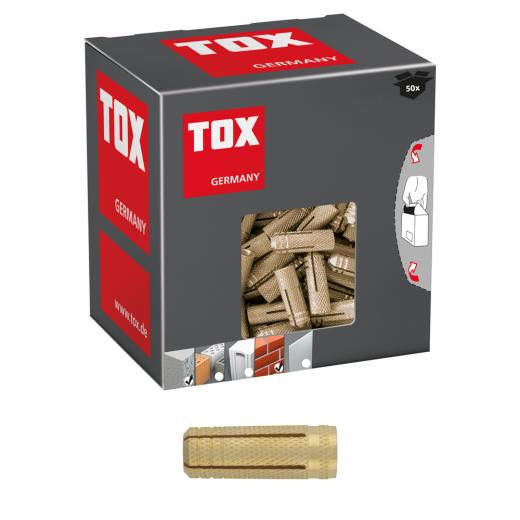

TOX Brass expansion wall plug Metrix M8x28 mm | 50 pieces

Product no.: T026100041

Properties

• The fixture can be loosened and tightened without loosening the wall plug
• No setting tools required
• Corrosion-resistant fixing in interiors and exteriors
• Cost-effective fixing

Description and field of application

• Multi-way brass inner thread wall plug
• Specially beaded surface prevents rotation in the drill hole
• Corrosion-resistant brass wall plug
• The wall plug name indicates the necessary screw diameter

Processing and assembly

• Screw length Ls = wall plug length + tfix fixture thickness
• Suitable for all screws and threaded rods with metric rod
• Where applicable pre-expand the brass wall plug by slightly turning the threaded screw
• Through and pre-positioned installation
• For distance installations in combination with threaded rods

---



Technical data:

Dowel diameter	M8		[mm]
Dowel length	28		[mm]
Screw size	M8		[ø mm]
Screw length	28mm + tfix		[mm]
Drill hole diameter	do	10	[mm]
Min. drill hole depth	h1	40	[mm]
Min. bolt penetration	hef	28	[mm]

Price:

26,00 EUR

19 % VAT incl. excl. Shipping costs

0,52 EUR per piece
