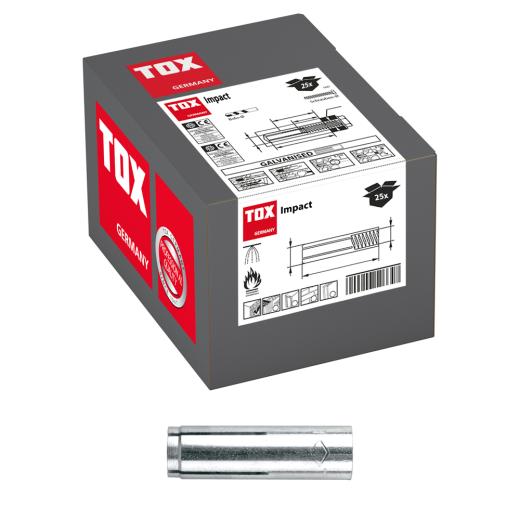

TOX Drop-in anchor Impact M16x65 mm | 25 pieces
Product no.: T02910007

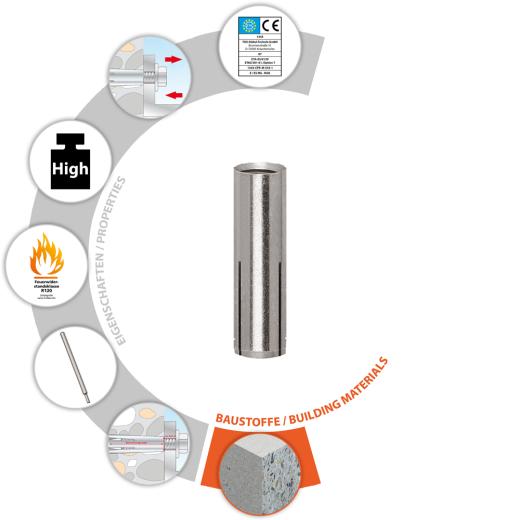

Properties
- The fixture can be loosened and tightened without loosening the wall plug
- Easy and secure installation using setting tool
- Small drill diameter and shallow anchoring depth
- Tested to fire resistance class R120
- Approved by building authorities
- High load-bearing values
Description and field of application
- zinc-plated: Galvanised zinc-plated, inner thread with integrated expansion element
- For fixings flush with the surface
- All wall plugs can also be used with threaded rods
- From size ? M8 approved for sprinkler systems

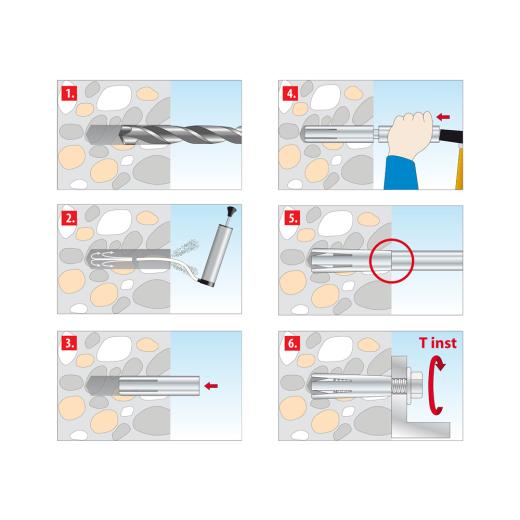

Processing and assembly
- The drill hole depth must be observed
- The screw length must be determined in accordance with the minimum screw-in depth and the tfix fixture thickness
- The galvanised zinc-plated Impact is for use only in dry interiors
- The stainless steel Impact A4 may be used in dry interiors, damp areas, exteriors including in industrial atmospheres and near the sea or lakes

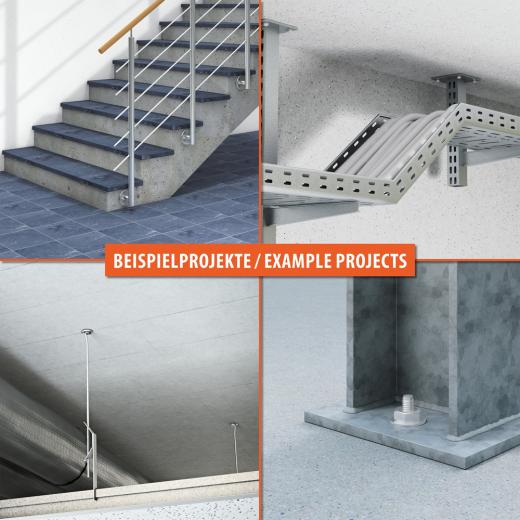

- For use as a multi-way fixing for non-load bearing systems in cracked and non-cracked concrete
- For distance installations in combination with threaded rodsPre-positioned installation
- The Impact Tool setting tool should be used for professional installation
Technical data:
| Dowel diameter | M16 | [mm] | |
| Dowel length | 65 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 20 | [mm] |
| Min. drill hole depth | h1 | 65 | [mm] |
| Min. bolt penetration | hef | 65 | [mm] |
Price:
32,30 EUR
19 % VAT incl. excl. Shipping costs
1,29 EUR per piece
