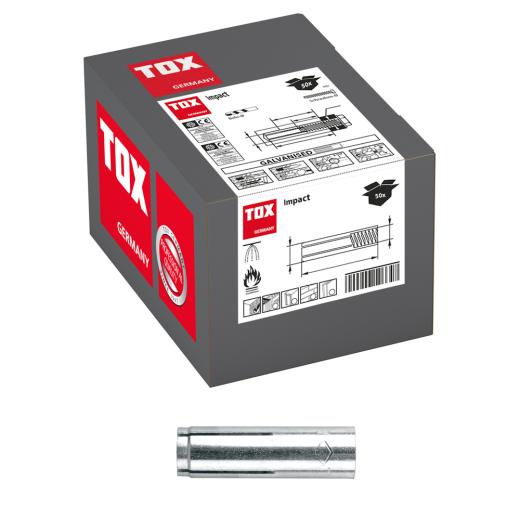

TOX Drop-in anchor Impact A4 M10x40 mm | 50 pieces

Product no.: T02917005

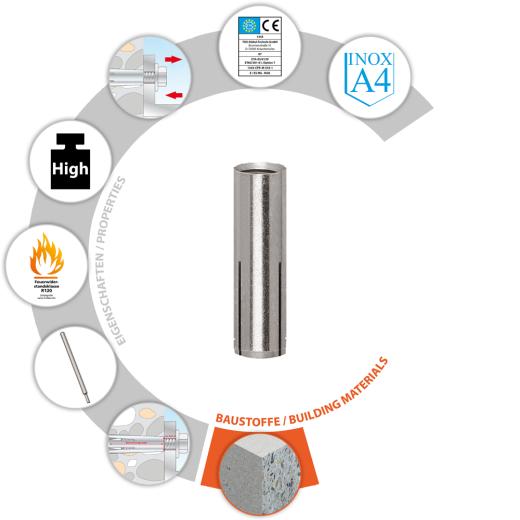

Properties

• The fixture can be loosened and tightened without loosening the wall plug
• Easy and secure installation using setting tool
• Small drill diameter and shallow anchoring depth
• Tested to fire resistance class R120
• Approved by building authorities
• High load-bearing values

Description and field of application

• A4: Stainless steel, inner thread with integrated expansion element
• For fixings flush with the surface
• All wall plugs can also be used with threaded rods
• From size ? M8 approved for sprinkler systems
• Impact Tool: Setting tool for professional, secure installation

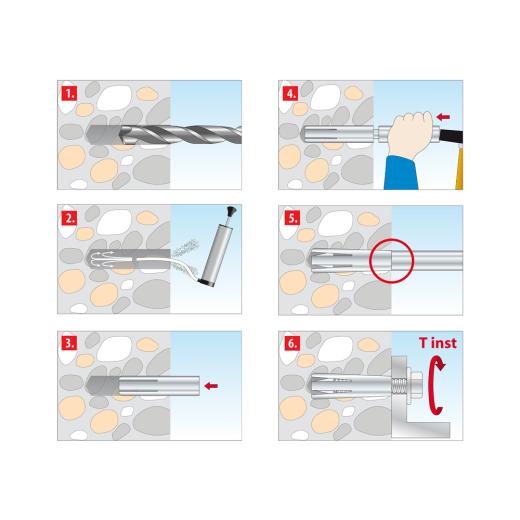

Processing and assembly

• The drill hole depth must be observed
• The screw length must be determined in accordance with the minimum screw-in depth and the tfix fixture thickness
• The galvanised zinc-plated Impact is for use only in dry interiors

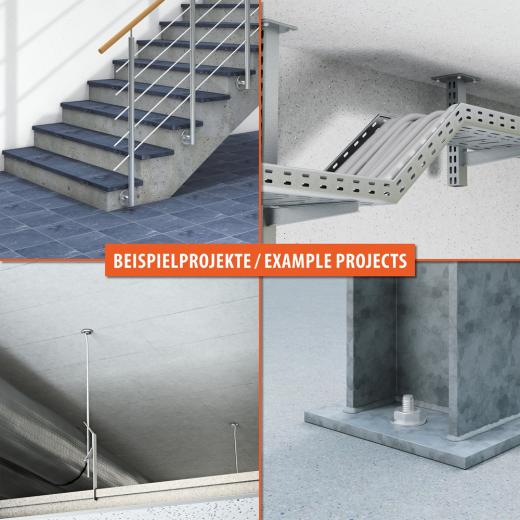

• The stainless steel Impact A4 may be used in dry interiors, damp areas, exteriors including in industrial atmospheres and near the sea or lakes
• For use as a multi-way fixing for non-load bearing systems in cracked and non-cracked concrete
• For distance installations in combination with threaded rodsPre-positioned installation
• The Impact Tool setting tool should be used for professional installation

---



Technical data:

Dowel diameter	M10		[mm]
Dowel length	40		[mm]
Screw size	73181900		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	12	[mm]
Min. drill hole depth	h1	40	[mm]
Min. bolt penetration	hef	40	[mm]

Price:

253,30 EUR

19 % VAT incl. excl. Shipping costs

5,07 EUR per piece
