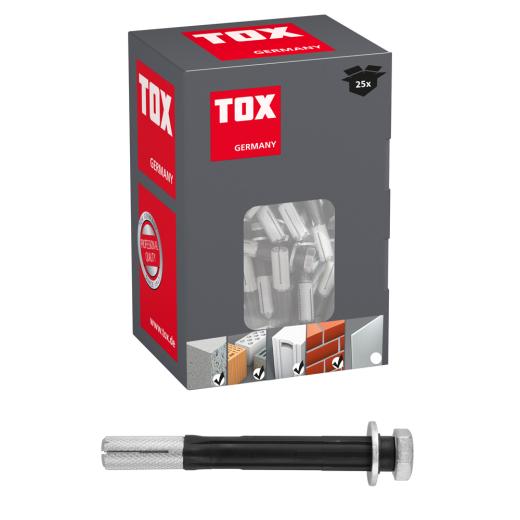

TOX Metric long anchor Control 12x120 mm | 25 pieces

Product no.: T030101651

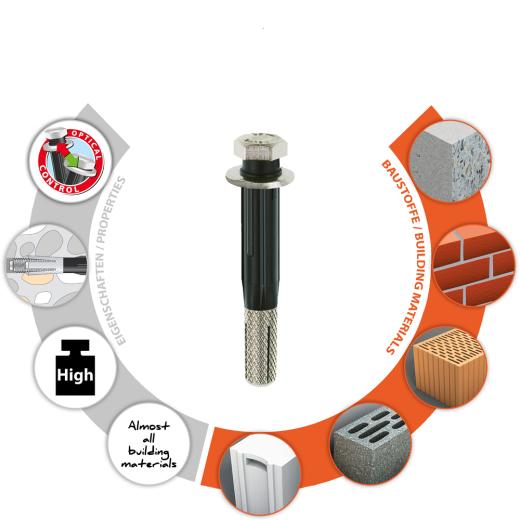

Properties

• Visual expansion control replaces torque wrench
• Holds secure in almost all building materials
• Equally distributed expansion thanks to internal cone
• High load-bearing values (metallic transfer of force)

Description and field of application

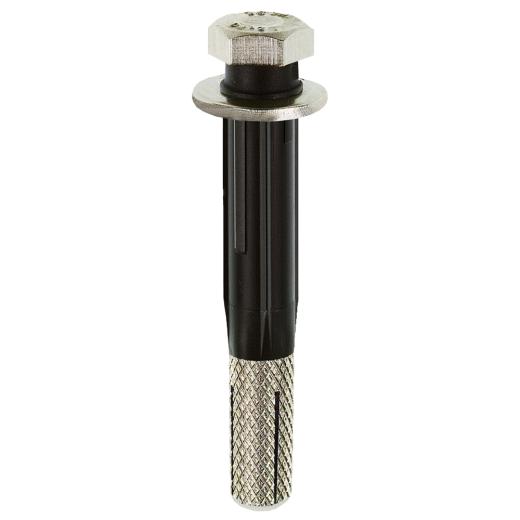

• 4-part metal expansion element
• Large washer Ø 24 mm
• Hexagonal screw strength class 8.8, galvanised zinc-plated with plastic sleeve

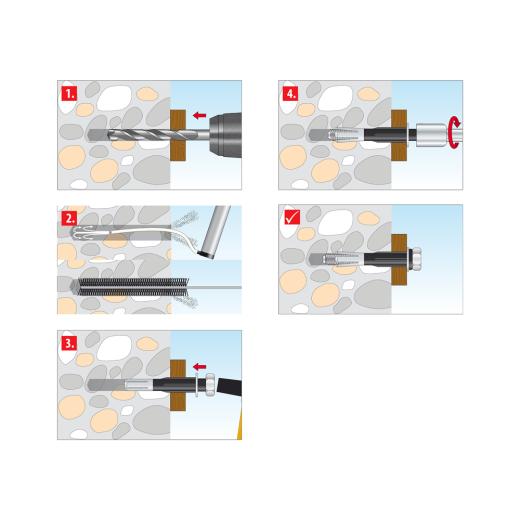

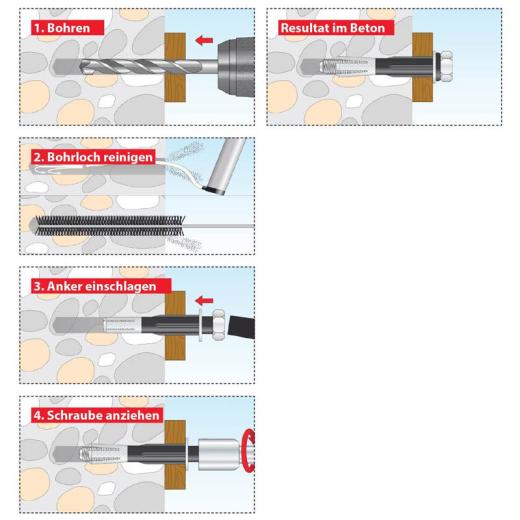

Processing and assembly

• The maximum expansion in the various building materials is achieved when the protruding flange is pressed together with the insertion marking ring
• Holds secure in concrete and solid brick by expansion
• Holds secure in perforated brick and porous concrete (aerated concrete) by expansion and form locking
• Through installation

---



Technical data:

Dowel diameter	12		[mm]
Dowel length	120		[mm]
Screw size	73181900		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	12	[mm]
Min. drill hole depth	h1	130	[mm]
Min. bolt penetration	hef	50	[mm]

Price:

54,20 EUR

19 % VAT incl. excl. Shipping costs

2,17 EUR per piece
