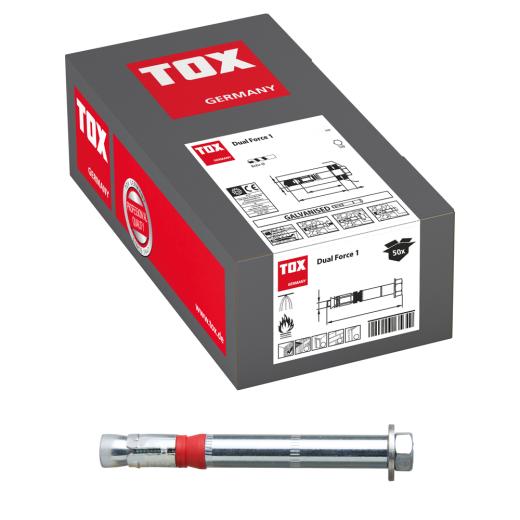

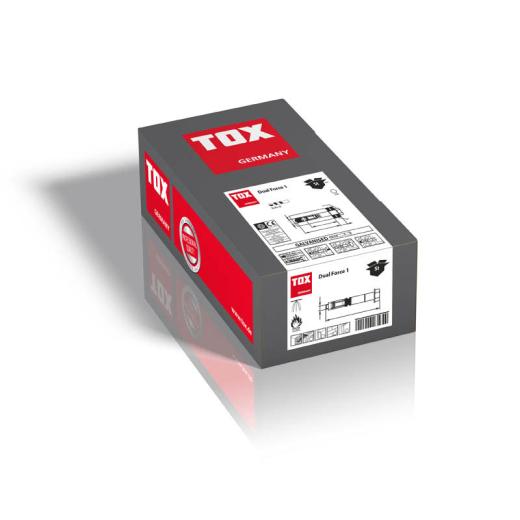

TOX Heavy-duty anchor Dual Force 1 12x10 mm | 50 pieces
Product no.: T03210012

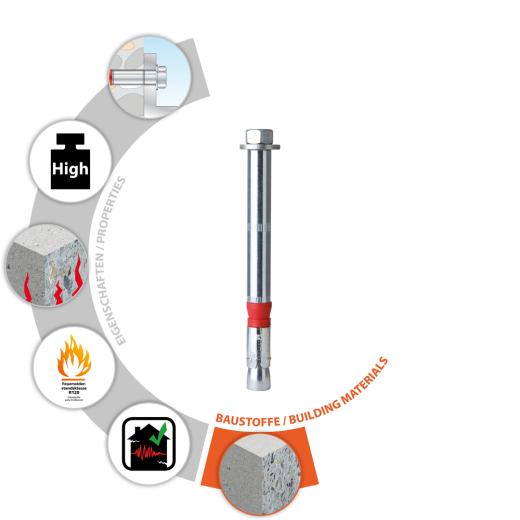

Properties
- Strong hold even in cavity layers
- Approved by building authorities
- For cracked and non-cracked concrete
- Tested to fire resistance class R120
- Low axis and edge distances
- Seismic performance category C1
Description and field of application

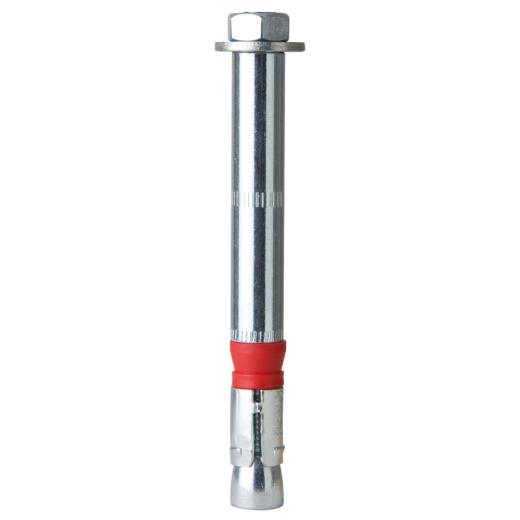

- Heavy-duty anchor made of galvanized zinc-plated steel with hexagonal screw
- The red plastic ring balances cavities, ensures lasting interlocking of the fixing part and prevents the anchor from rotating during installation
- Dimensions ? M8 designed for fixing sprinkler systems

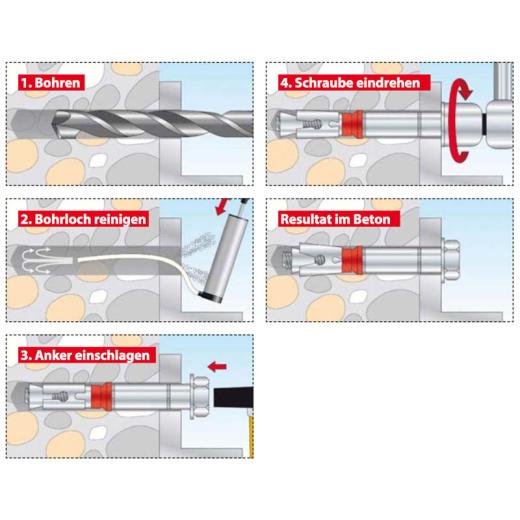

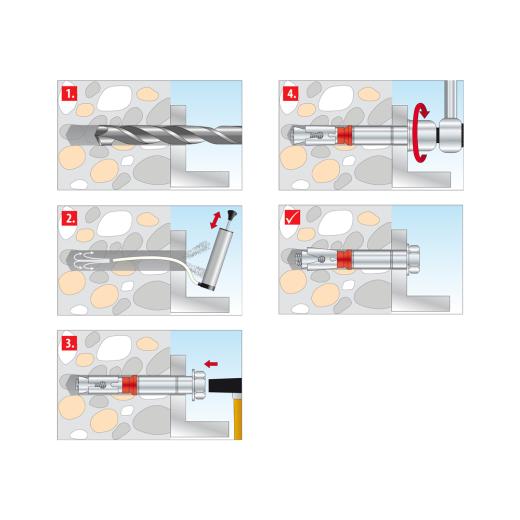

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
| Dowel diameter | 12 | [mm] | |
| Dowel length | 85 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 12 | [mm] |
| Min. drill hole depth | h1 | 80 | [mm] |
| Min. bolt penetration | hef | 60 | [mm] |
Price:
113,10 EUR
19 % VAT incl. excl. Shipping costs
2,26 EUR per piece
