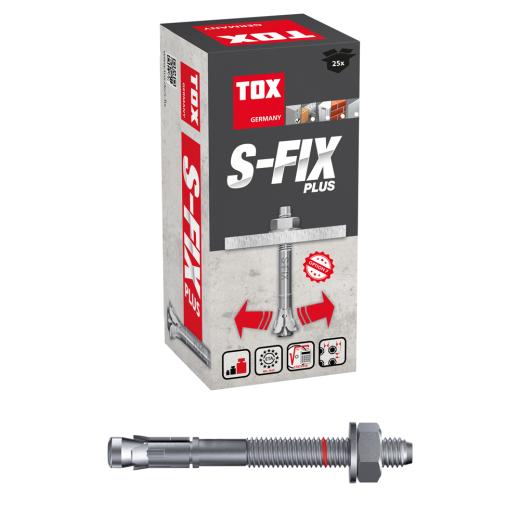

TOX Bolt anchor S-Fix Plus M12x160/68+83 mm | 25 pieces
Product no.: T04210135

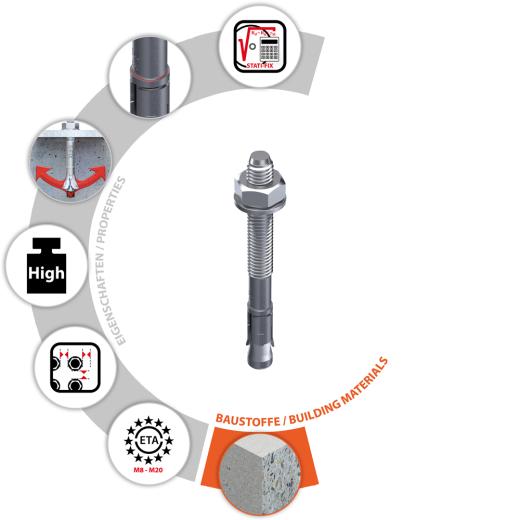

Properties
- Approved by building authorities
- Impact protection protects the thread
- Immediately load-bearing
- 2 insertion depths
- Insertion depth marking for optical installation control
Description and field of application

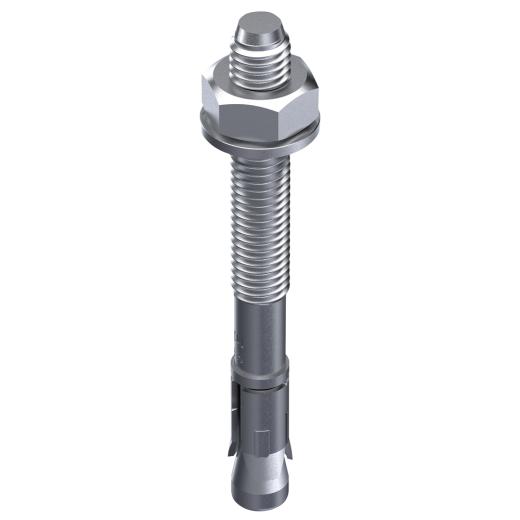

- Galvanised zinc-plated anchor bolt with long thread, washer and hexagonal nut
- Second anchoring depth enables fixing of wide range of sizes of fixtures
- Torque-controlled wall plug
- Low axis and edge distances for fixing close to edges and small anchor plates

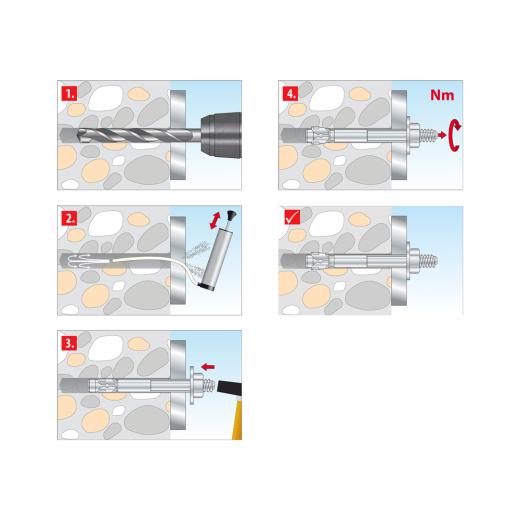

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
| Dowel diameter | M12 | [mm] | |
| Dowel length | 160 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 12 | [mm] |
| Min. drill hole depth | h1 | 70 | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
42,50 EUR
19 % VAT incl. excl. Shipping costs
1,70 EUR per piece
