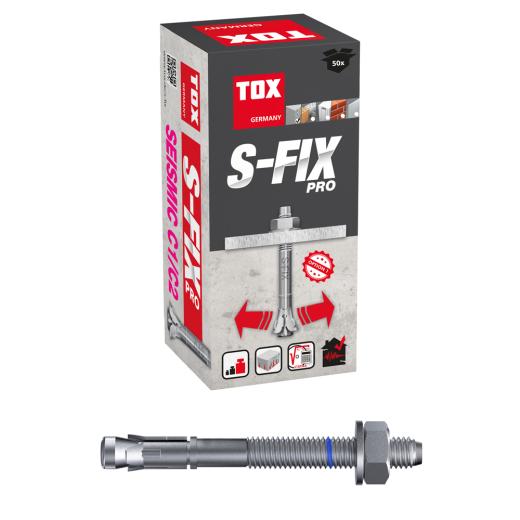

TOX Bolt anchor S-Fix Pro M8x95/29 mm | 50 pieces
Product no.: T04010211

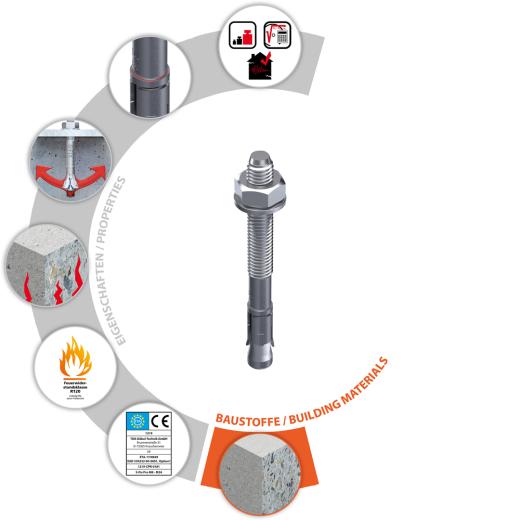

Properties
- Seismic performance category C1, C2
- Tested to fire resistance class R120
- Approved by building authorities
- Impact protection protects the thread
- Immediately load-bearing
- Extreme load-bearing performance
- Insertion depth marking for optical installation control
Description and field of application

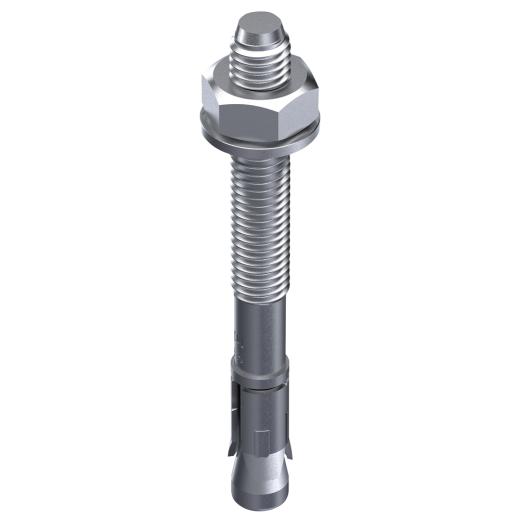

- Galvanised zinc-plated anchor bolt with long thread, washer and hexagonal nut
- Torque-controlled wall plug
- Low axis and edge distances for fixing close to edges and small anchor plates
- Reliable adherence to the necessary insertion depth thanks to insertion depth marking

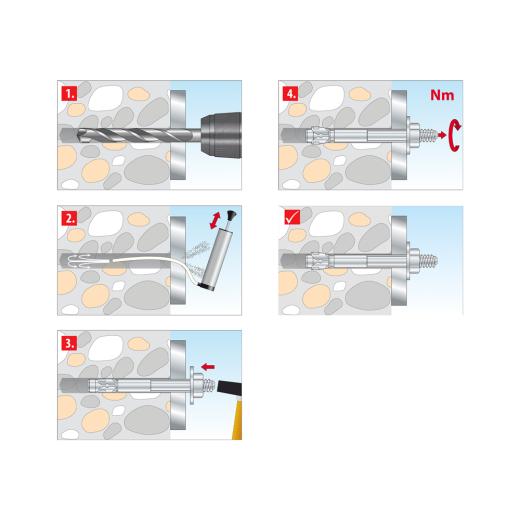

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
| Dowel diameter | M8 | [mm] | |
| Dowel length | 95 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 8 | [mm] |
| Min. drill hole depth | h1 | 60 | [mm] |
| Min. bolt penetration | hef | 48 | [mm] |
Price:
45,20 EUR
19 % VAT incl. excl. Shipping costs
0,90 EUR per piece
