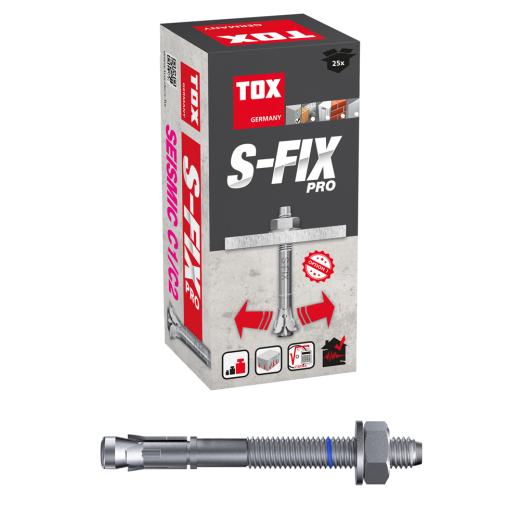

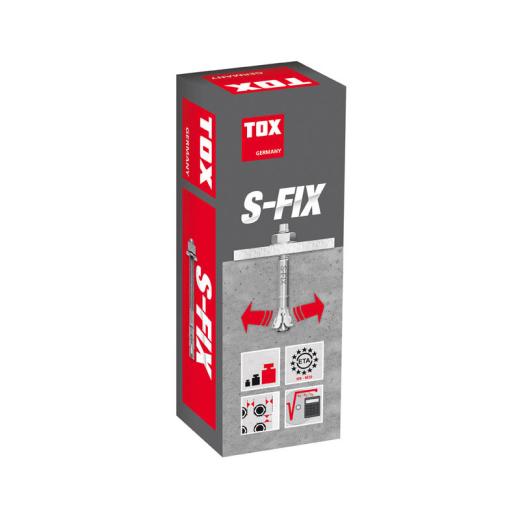

TOX Bolt anchor S-Fix Pro M10x135/55 mm | 25 pieces
Product no.: T04010219

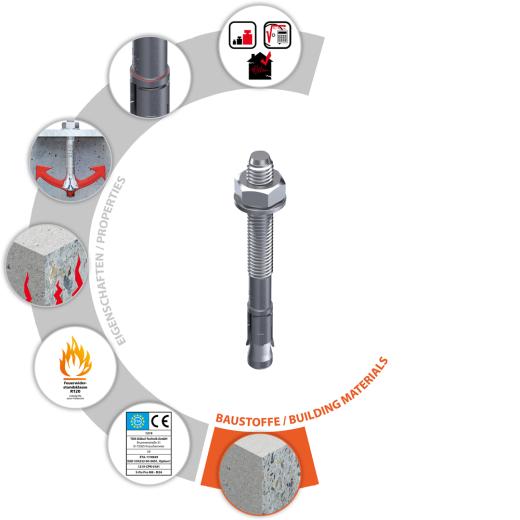

Properties
- Seismic performance category C1, C2
- Tested to fire resistance class R120
- Approved by building authorities
- Impact protection protects the thread
- Immediately load-bearing
- Extreme load-bearing performance
- Insertion depth marking for optical installation control
Description and field of application

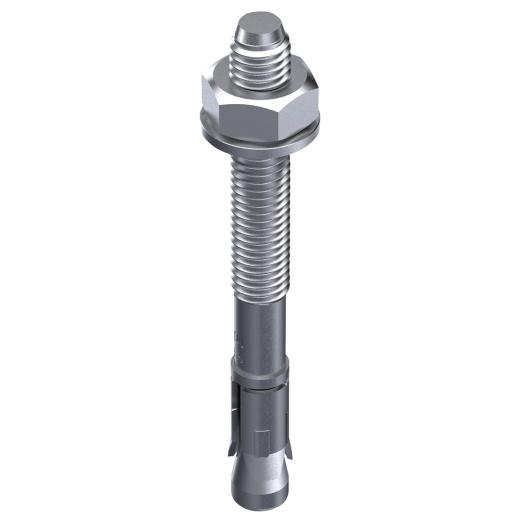

- Galvanised zinc-plated anchor bolt with long thread, washer and hexagonal nut
- Torque-controlled wall plug
- Low axis and edge distances for fixing close to edges and small anchor plates
- Reliable adherence to the necessary insertion depth thanks to insertion depth marking

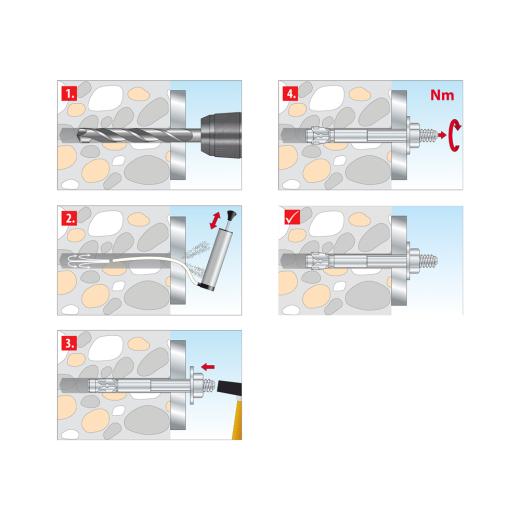

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
| Dowel diameter | M10 | [mm] | |
| Dowel length | 135 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 75 | [mm] |
| Min. bolt penetration | hef | 60 | [mm] |
Price:
40,20 EUR
19 % VAT incl. excl. Shipping costs
1,61 EUR per piece
