Product no.: T04010237

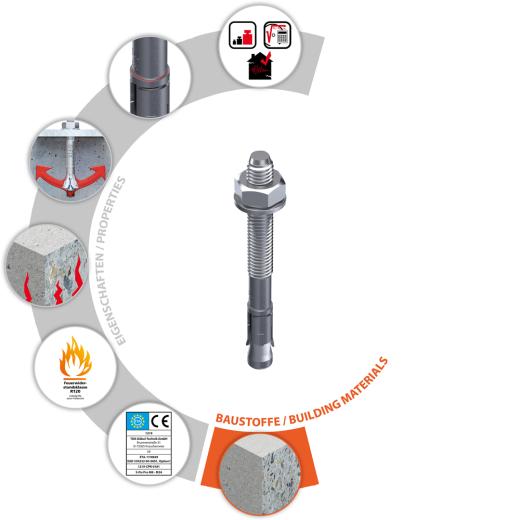

Properties
- Seismic performance category C1, C2
- Tested to fire resistance class R120
- Approved by building authorities
- Impact protection protects the thread
- Immediately load-bearing
- Extreme load-bearing performance
- Insertion depth marking for optical installation control
Description and field of application

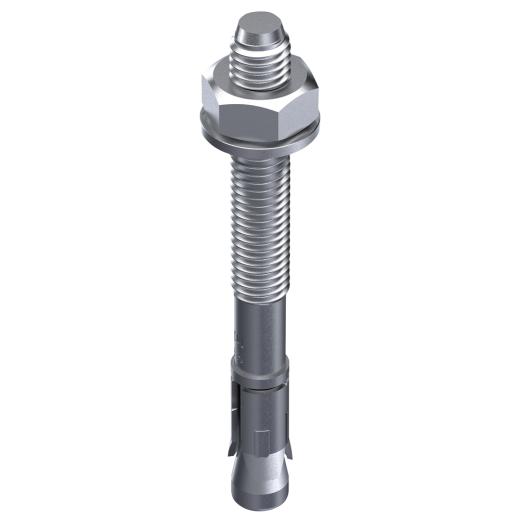

- Galvanised zinc-plated anchor bolt with long thread, washer and hexagonal nut
- Torque-controlled wall plug
- Low axis and edge distances for fixing close to edges and small anchor plates
- Reliable adherence to the necessary insertion depth thanks to insertion depth marking

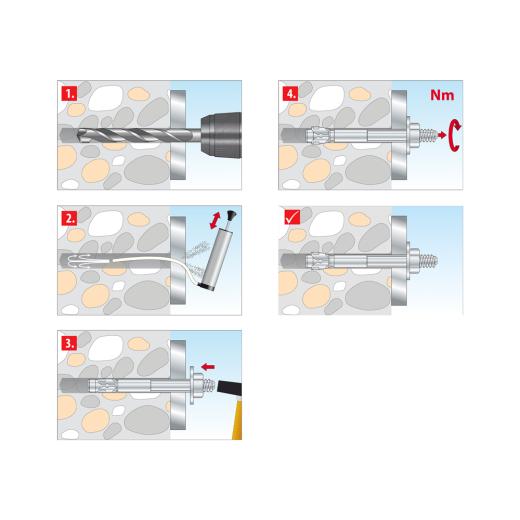

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
Dowel diameter |
M16 |
[mm] |
Dowel length |
175 |
[mm] |
Screw size |
73181900 |
[ΓΈ mm] |
Screw length |
- |
[mm] |
Drill hole diameter |
do |
16 |
[mm] |
Min. drill hole depth |
h1 |
105 |
[mm] |
Min. bolt penetration |
hef |
85 |
[mm] |
Price:
53,90 EUR
19 % VAT incl. excl. Shipping costs
5,39 EUR per piece
