TOX Bolt anchor Slim Fix M12x280/186+201 mm | 20 pieces
Product no.: T08010136

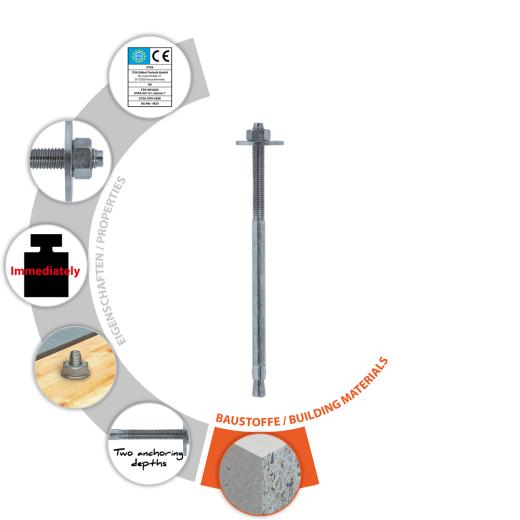

Properties
- Approved by building authorities
- Impact protection protects the thread
- Immediately load-bearing

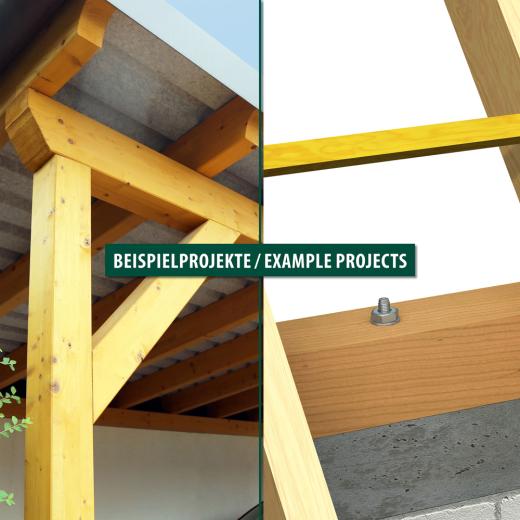

- Large disk specifically for wooden constructions
- 2 anchoring depths
Description and field of application

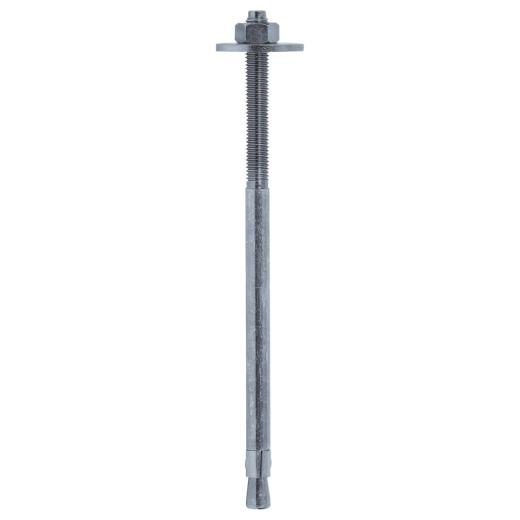

- Galvanised zinc-plated anchor bolt with long thread, large washer and hexagonal nut
- Second anchoring depth enables fixing of wide range of sizes of fixtures
- Torque-controlled wall plug
- Low axis and edge distances for fixing close to edges

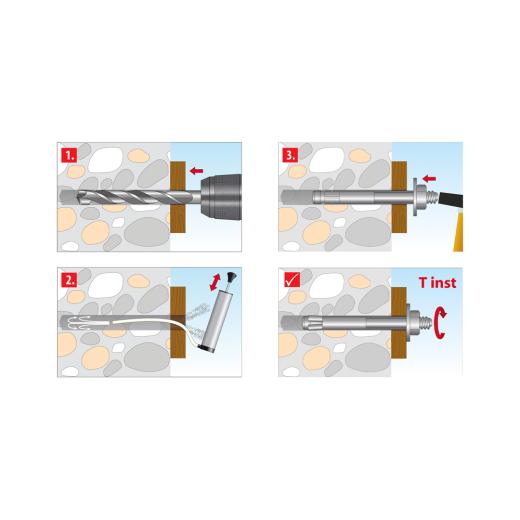

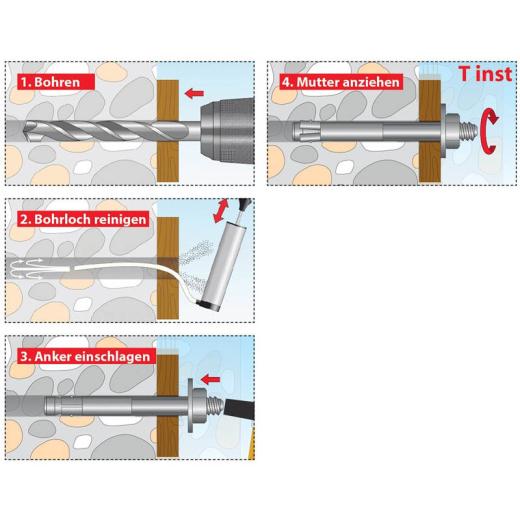

Processing and assembly
- Suitable for use only in dry interiors
- The prescribed torque must be observed
- Through installation
Technical data:
| Dowel diameter | M12 | [mm] | |
| Dowel length | 280 | [mm] | |
| Screw size | 73181900 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 12 | [mm] |
| Min. drill hole depth | h1 | 70 | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
67,20 EUR
19 % VAT incl. excl. Shipping costs
3,36 EUR per piece
