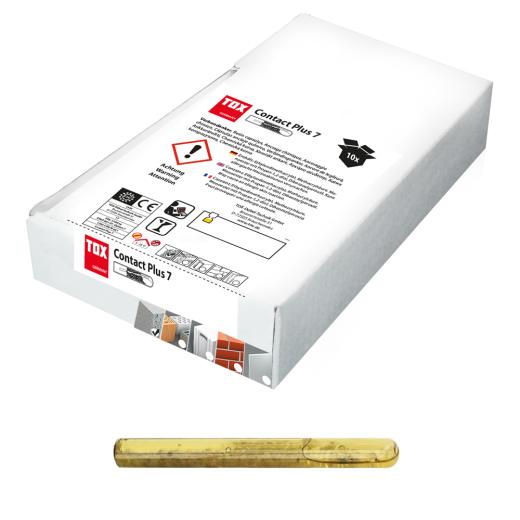

TOX Compound anchor Contact Plus 7 M8 | 10 pieces

Product no.: T038100601

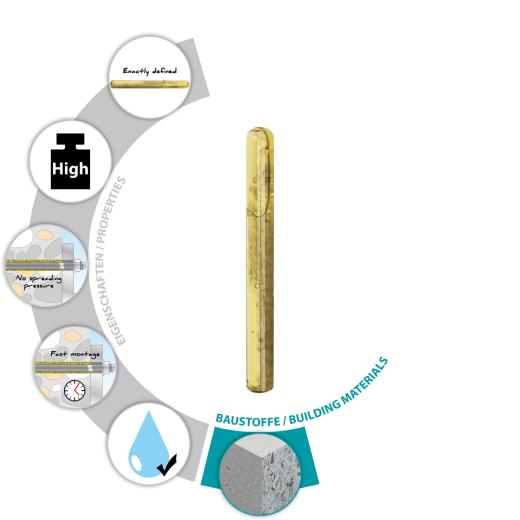

Properties

• Quick, straightforward use thanks to precisely defined volume per drill hole
• High loads with a small drill diameter
• Approved by building authorities
• Anchoring with no expansion pressure
• Shallow anchoring depth enables quick installation
• Water-tight fixing
• Styrene-free
• M12 - also for water-filled drill holes



Description and field of application

• Glass cartridge chemical anchor with separate components
• For use in combination with Stix threaded rod
• For fixing steel constructions, railings, high shelves, base plates, columns and wooden constructions with no expansion pressure

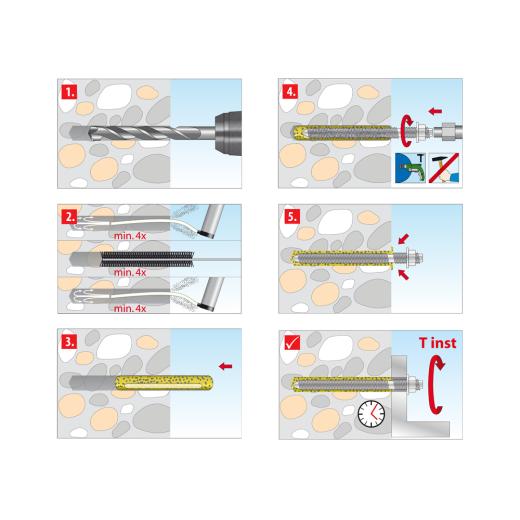

Processing and assembly

• Clean the drill hole
• Insert the mortar cartridge into the drill hole
• Slowly turn the threaded rod with the drill so that it vibrates and any excess mortar is visible
• The prescribed torque and hardening time must be observed
• Pre-positioned installation

---



Technical data:

Dowel diameter	M8		[mm]
Dowel length	80		[mm]
Screw size	M8		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	10	[mm]
Min. drill hole depth	h1	80	[mm]
Min. bolt penetration	hef	80	[mm]

Price:

24,60 EUR

19 % VAT incl. excl. Shipping costs

2,46 EUR per piece
