TOX Threaded rod Stix-VZ M10x130 mm, galvanised | 10 pieces
Product no.: T070101131
Properties
- Approved for use with Contact chemical anchor and Liquix injection mortar
- Zinc-plated

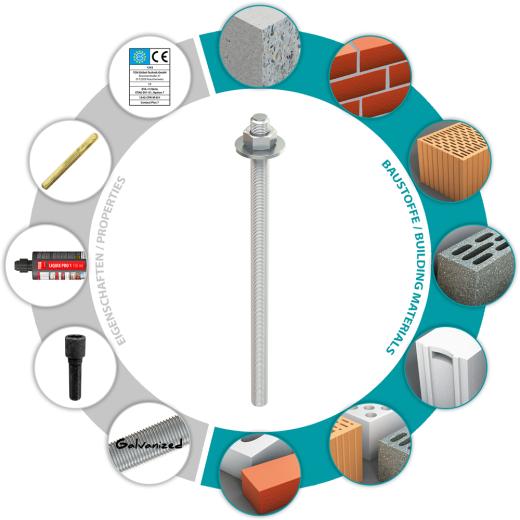

Description and field of application

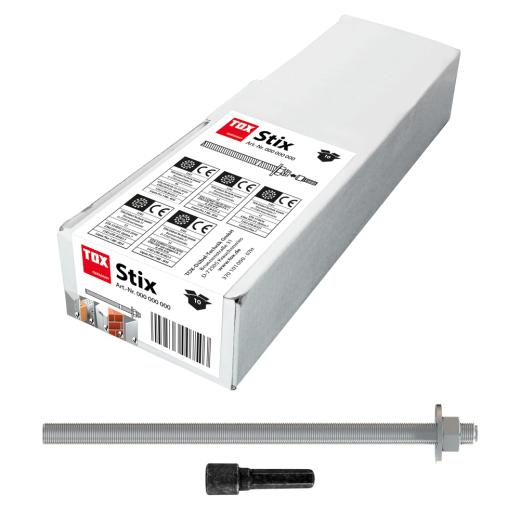

- Made of galvanised zinc-plated steel (Stix-VZ) or stainless steel (Stix-A4) with external hexagonal drive, insertion depth marking, rooftop-shaped tip, hexagonal nut, washer and setting tool
- The Stix anchor rod is included in the approvals for the Contact chemical anchor and Liquix Pro 1 and Liquix Plus 7 injection mortars

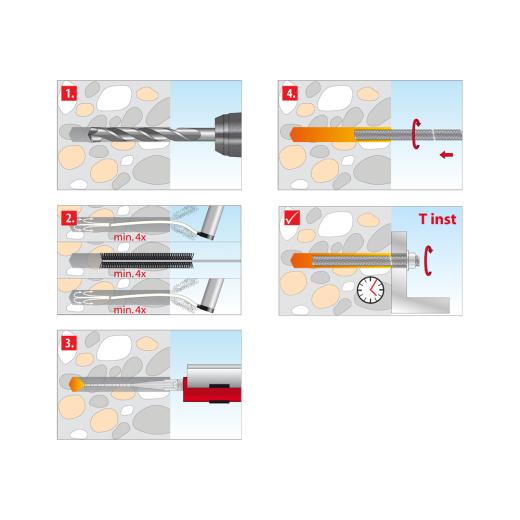

Processing and assembly
- Anchor rod made of galvanised and zinc-plated steel is for use in dry areas only
- Anchor rod make of A4 stainless steel may be used in dry interiors, damp areas and exteriors including in industrial atmospheres and near the sea
- Pre-positioned installation
Technical data:
| Dowel diameter | M10 | [mm] | |
| Dowel length | 130 | [mm] | |
| Screw size | 73181542 | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 12 | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
14,90 EUR
19 % VAT incl. excl. Shipping costs
1,49 EUR per piece
