fischer Frame fixing DuoXpand 10 x 100 FUS R - 50 pieces

Product no.: F562176

fischer Frame fixing DuoXpand 10 x 100 FUS R Hexagon head screw

Version

• stainless steel

Applications

• façade, ceiling and roof substructures made of wood or metal, windows, gates and doors, wardrobes, kitchen hanging cabinets, squared timbers, beams, TV consoles, wall cladding, metal angles, metal brackets, cable ducts, cable trays



Building materials
Approved for:

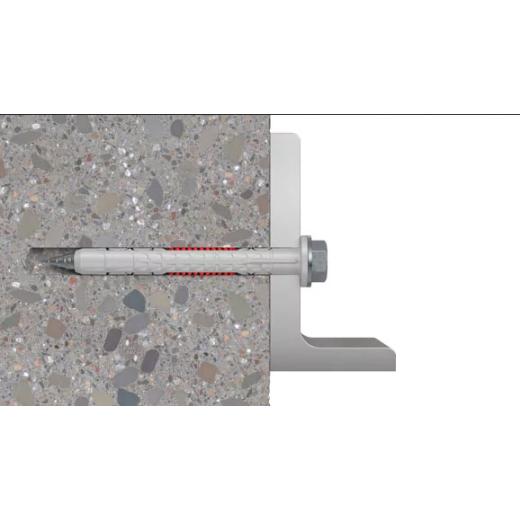

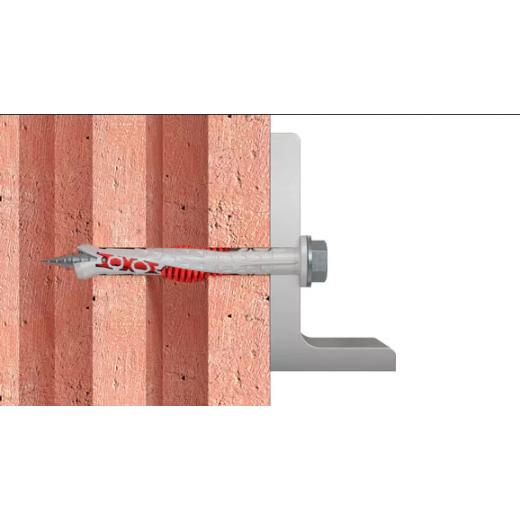

• concrete >= C12/15, solid brick, solid sand-lime brick, solid block of lightweight and normal weight concrete, vertically perforated brick, perforated sand-lime brick, hollow block of lightweight concrete, aerated concrete

Also suitable for:

• natural stone with dense structure, solid gypsum slabs

Approvals

• ETA-21/0324, DoP No. 0244

Technical data

Approval	ETA	yes
Drill hole diameter	d0	10	[mm]
Min. drill hole depth for through fixings	h2	110	[mm]
Usable length at anchorage depth hmom  = 50 mm	tfix	50	[mm]
Usable length at anchorage depth hmom  = 70 mm	tfix	30	[mm]
Usable length at anchorage depth hmom  = 140 mm	tfix	-	[mm]
Usable length at anchorage depth hmom  = 160 mm	tfix	-	[mm]
Anchor length	l	100	[mm]
Drive	T/SW	T40/SW13

Price:

193,90 EUR

19 % VAT incl. excl. Shipping costs

3,88 EUR per piece
