fischer Power-Fast II 5 x 90 BC, TX25, countersunk head, steel galvanized, blue passivated - 200 pieces

Product no.: F670347

fischer PowerFast II 5 x 90/54

Product Data

  • Material: Steel, Coating: Gvz, blue passivated, Drive: TX star, Thread type: Partial thread, Head shape: Countersunk head

TOP Features

  • The increased thread pitch of the screw significantly reduces the screwing time.
  • The screw tip with the three ribs ensures fast biting and pre-milling.
  • The shank milling ribs in combination with the core cutter geometry noticeably reduce the screwing resistance.


Applications

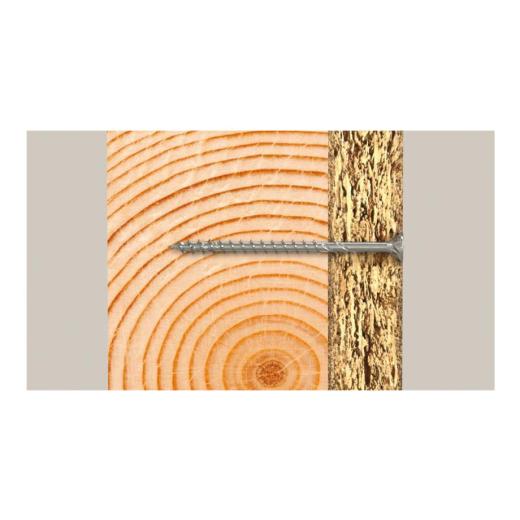

  • For use in load-bearing timber constructions, for connecting parts made of solid wood, glued laminated timber, wood-based panels, etc.
  • For connections of metal parts to wood, such as metal fittings, angles, beam shoes, and other metal and wood connections.
  • For applications with tested loads in fischer plugs (e.g., DuoPower and UX).


Building Materials

  • Solid wood (softwood and hardwood), glued laminated timber, plywood, veneered laminated timber, similarly bonded wooden components, and wood-based panels


Approval

  • ETA-19/0175 - Screws for use in timber construction, DoP W0009, DoP: 0118, Test Report No. 201811-0081:2019


Technical Details

Diameter d 5 [mm]
Length l 90 [mm]
Thread length lg 54 [mm]
Head diameter dk 10 [mm]
Drive TX TX25

Price:

28,90 EUR

19 % VAT incl. excl. Shipping costs

0,14 EUR per piece
