TOX All-purpose wall plug Tri 5x31 mm | 100 pieces

Product no.: T010100021

Properties

• The original all-purpose wall plug – often copied but never matched

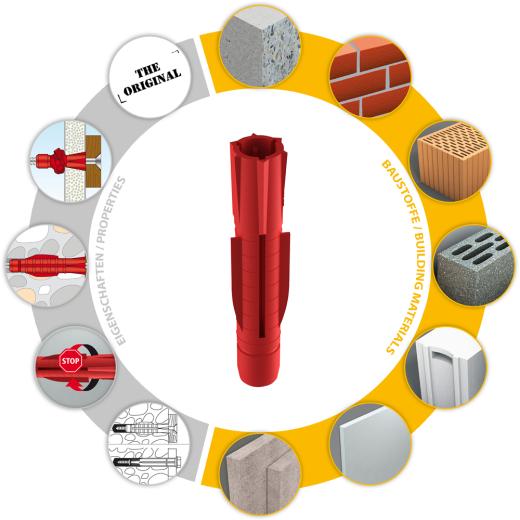

• Holds secure in almost all building materials
• Automatic knotting or expansion depending on the building material
• No rotation in the drill hole
• Pre-positioned and through installation

Description and field of application

• 3-part wall plug element without wall plug cap
• Anti-rotation locks on the fixing neck prevent rotation in the building material
• Tri + screw: Countersunk screw with PZ drive

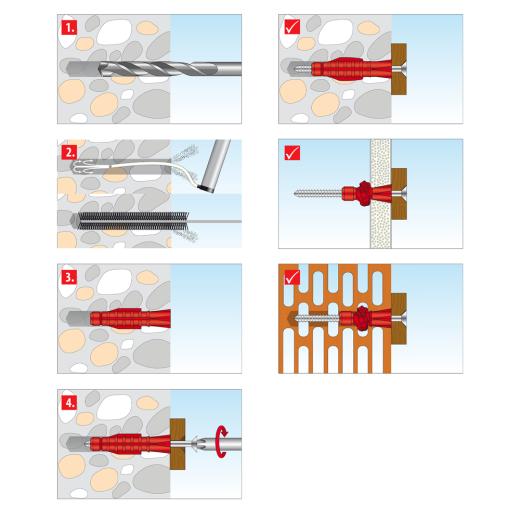

Processing and assembly

• Make a drill hole the size of the wall plug diameter
• Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
• The drill hole in gypsum plasterboard must be made with a wood or metal drill
• Drill into concrete and solid brick with impact
• Minimum screw length = wall plug length + fixture thickness + 5 mm
• Pre-positioned and through installation possible

---



Technical data:

Dowel diameter	5		[mm]
Dowel length	31		[mm]
Screw size	3,0-4,0		[ø mm]
Screw length	≤ 35mm + tfix		[mm]
Drill hole diameter	do	5	[mm]
Min. drill hole depth	h1	45	[mm]
Min. bolt penetration	hef	31	[mm]

Price:

5,30 EUR

19 % VAT incl. excl. Shipping costs

0,05 EUR per piece
