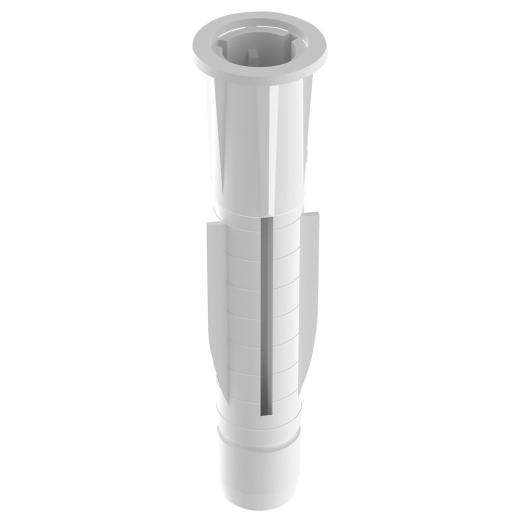

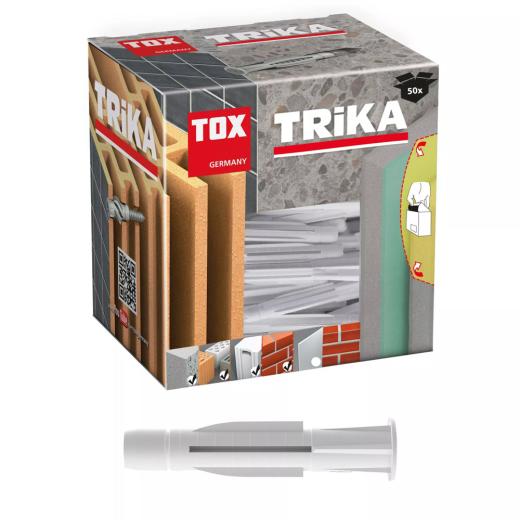

TOX All-purpose wall plug Trika 10x61 mm | 50 pieces
Product no.: T011100161

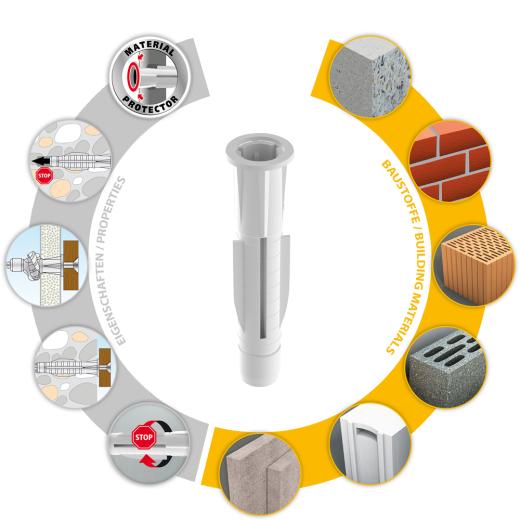

Properties
- The wall plug cap protects the surface and prevents slippage into the drill hole
- Holds secure in almost all building materials
- Automatic knotting or expansion depending on the building material
- Anti-rotation locks prevent rotation in the drill hole
- Suitable for pre-positioned installation
- All-purpose wall plug for virtually all building materials
- 3-part wall plug element with wall plug cap
- Anti-rotation locks on the fixing neck prevent rotation in the building material
- Trika + screw: Countersunk screw with PZ drive

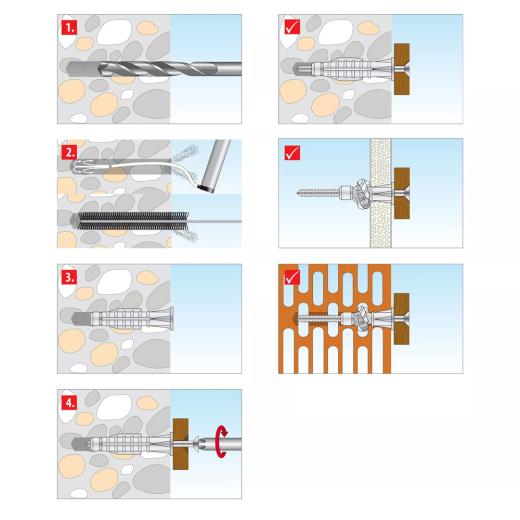

- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- The drill hole in gypsum plasterboard must be made with a wood or metal drill
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned installation

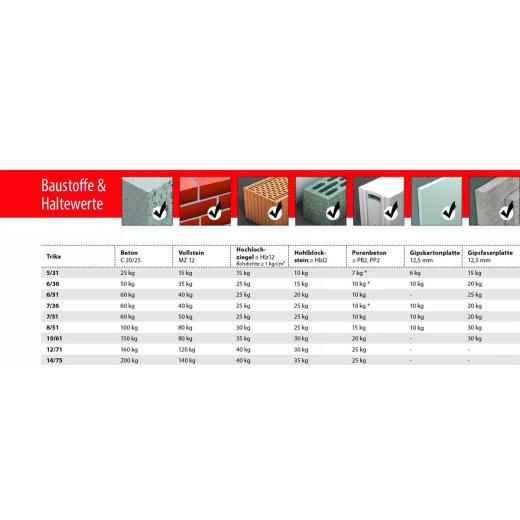

Technical data:
| Dowel diameter | 10 | [mm] | |
| Dowel length | 61 | [mm] | |
| Screw size | 6,0-8,0 | [ΓΈ mm] | |
| Screw length | ≤ 70mm + tfix | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 85 | [mm] |
| Min. bolt penetration | hef | 61 | [mm] |
Price:
12,00 EUR
19 % VAT incl. excl. Shipping costs
0,24 EUR per piece
