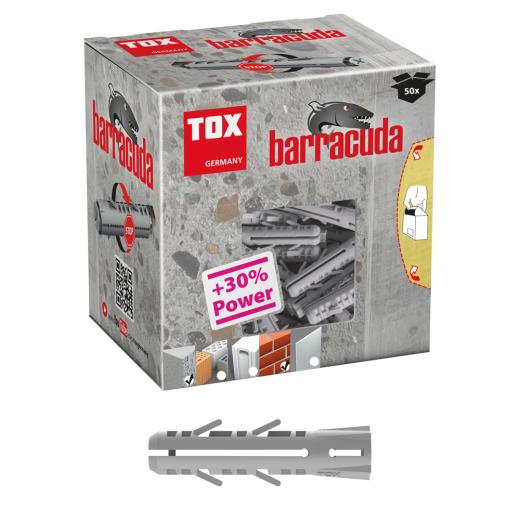

TOX Expansion wall plug Barracuda 10x50 mm | 50 pieces

Product no.: T013100081

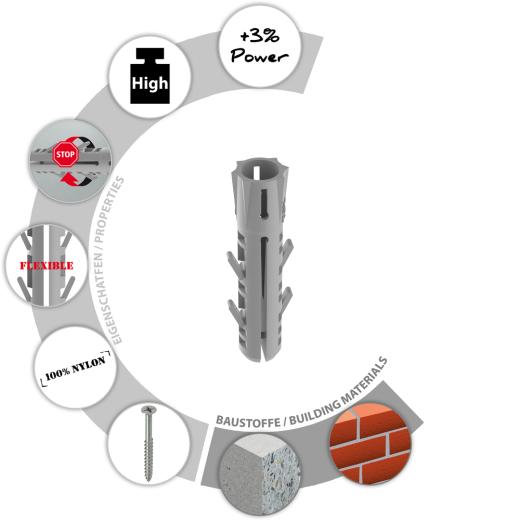

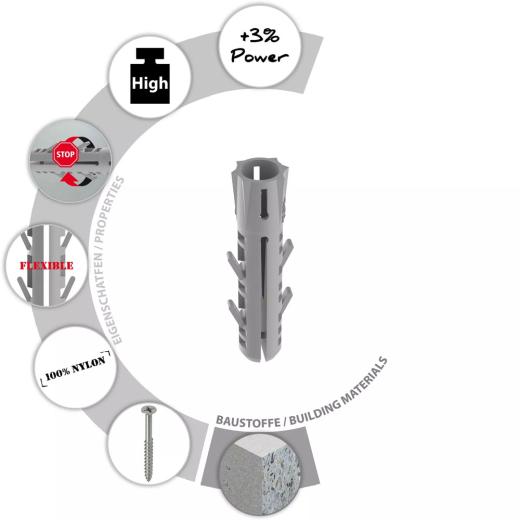

Properties

• Up to 30% higher load-bearing values than other expansion wall plugs
• Several active anti-rotation locks
• Also suitable for chipboard screws
• High material proportion for high load-bearing values
• Secure screw guidance
• 100% nylon
• The flexible wall plug neck adapts itself to the drill hole

Description and field of application

• Expansion wall plug for solid building materials

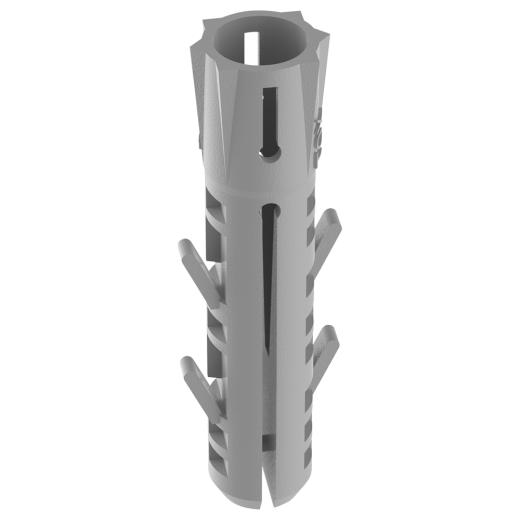

• 2-part expansion element with anti-rotation locks and flexible wall plug neck
• Halogen-free
• Can be used with wood screws, chipboard screws and hanger bolts
• Barracuda + screw: Screw with PZ drive

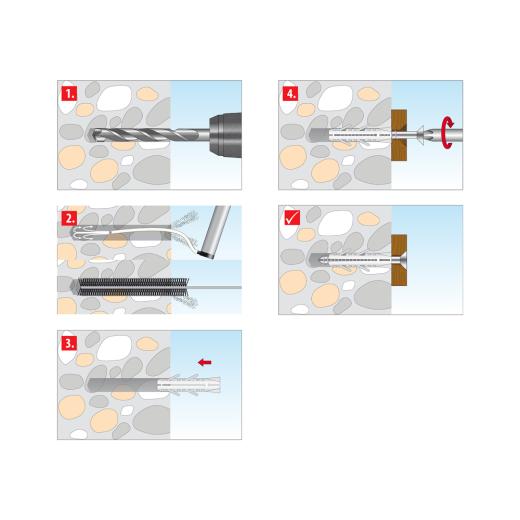

Processing and assembly

• Make a drill hole the size of the wall plug diameter
• Drill into concrete and solid brick with impact
• Minimum screw length = wall plug length + fixture thickness + 5 mm
• Pre-positioned installation

---



Technical data:

Dowel diameter	10		[mm]
Dowel length	50		[mm]
Screw size	6,0-8,0		[ø mm]
Screw length	≤ 55mm + tfix		[mm]
Drill hole diameter	do	10	[mm]
Min. drill hole depth	h1	70	[mm]
Min. bolt penetration	hef	50	[mm]

Price:

8,40 EUR

19 % VAT incl. excl. Shipping costs

0,17 EUR per piece
