Product no.: T013100101

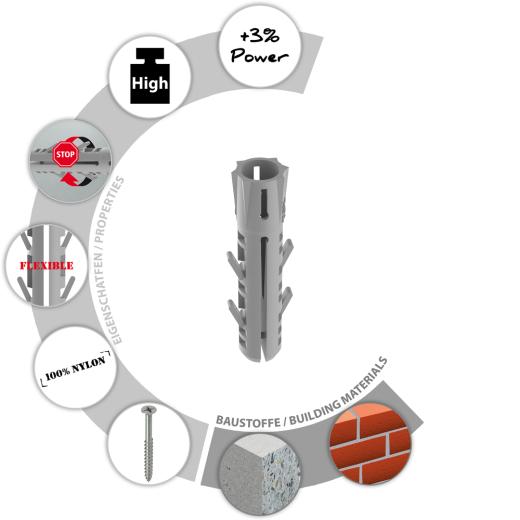

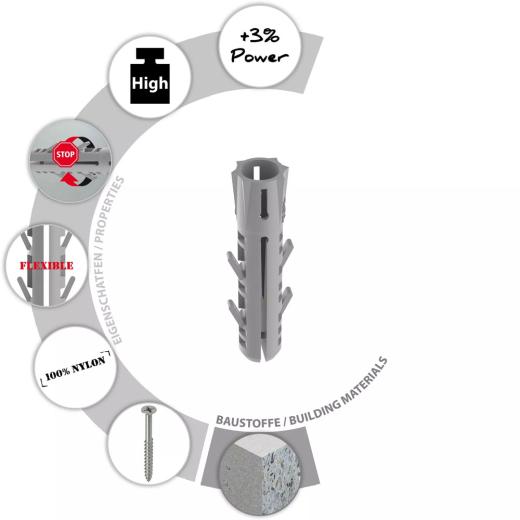

Properties
- Up to 30% higher load-bearing values than other expansion wall plugs
- Several active anti-rotation locks
- Also suitable for chipboard screws
- High material proportion for high load-bearing values
- Secure screw guidance
- 100% nylon
- The flexible wall plug neck adapts itself to the drill hole
Description and field of application
- Expansion wall plug for solid building materials

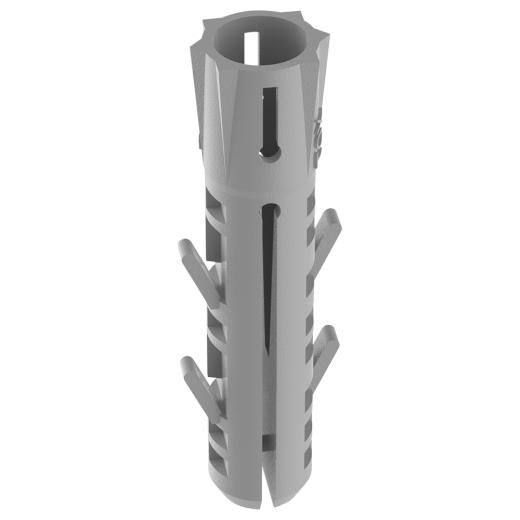

- 2-part expansion element with anti-rotation locks and flexible wall plug neck
- Halogen-free
- Can be used with wood screws, chipboard screws and hanger bolts
- Barracuda + screw: Screw with PZ drive

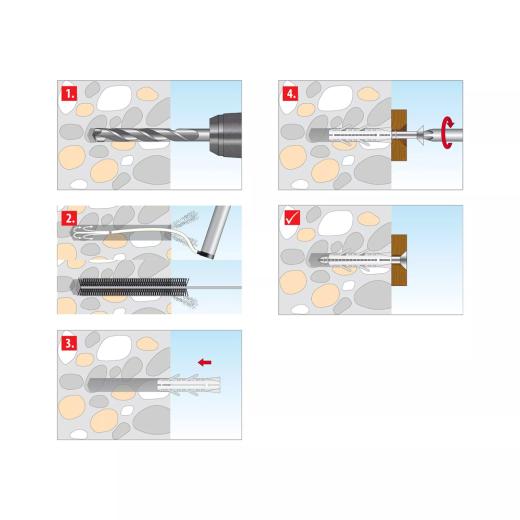

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned installation
Technical data:
| Dowel diameter |
12 |
[mm] |
| Dowel length |
60 |
[mm] |
| Screw size |
8,0-10,0 |
[ΓΈ mm] |
| Screw length |
≤ 70mm + tfix |
[mm] |
| Drill hole diameter |
do |
12 |
[mm] |
| Min. drill hole depth |
h1 |
80 |
[mm] |
| Min. bolt penetration |
hef |
60 |
[mm] |

Price:
6,30 EUR
19 % VAT incl. excl. Shipping costs
0,25 EUR per piece
