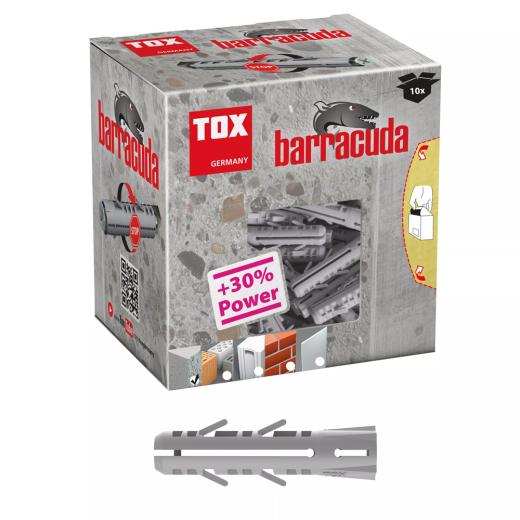

TOX Expansion wall plug Barracuda 14x70 mm | 20 pieces

Product no.: T013100121

Properties

• Up to 30% higher load-bearing values than other expansion wall plugs
• Several active anti-rotation locks
• Also suitable for chipboard screws
• High material proportion for high load-bearing values
• Secure screw guidance
• 100% nylon
• The flexible wall plug neck adapts itself to the drill hole

Description and field of application

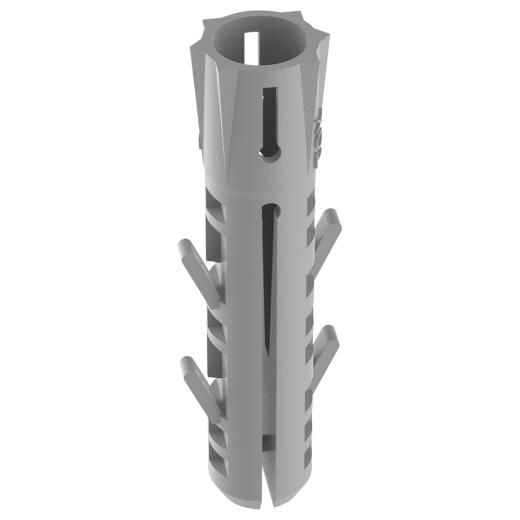

• Expansion wall plug for solid building materials
• 2-part expansion element with anti-rotation locks and flexible wall plug neck
• Halogen-free
• Can be used with wood screws, chipboard screws and hanger bolts
• Barracuda + screw: Screw with PZ drive

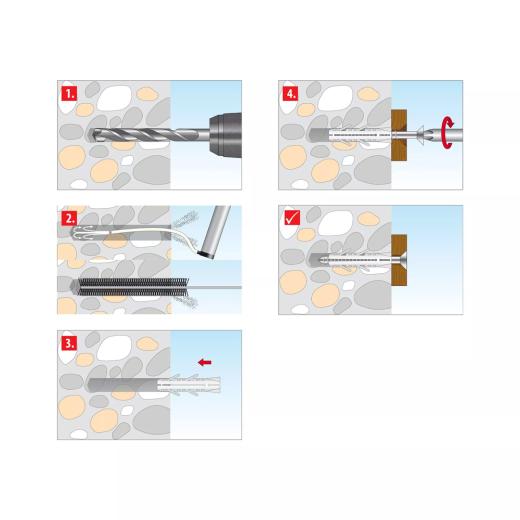

Processing and assembly

• Make a drill hole the size of the wall plug diameter
• Drill into concrete and solid brick with impact
• Minimum screw length = wall plug length + fixture thickness + 5 mm
• Pre-positioned installation

---



Technical data:

Dowel diameter	14		[mm]
Dowel length	70		[mm]
Screw size	10,0-12,0		[ø mm]
Screw length	≤ 80mm + tfix		[mm]
Drill hole diameter	do	14	[mm]
Min. drill hole depth	h1	95	[mm]
Min. bolt penetration	hef	70	[mm]

Price:

9,40 EUR

19 % VAT incl. excl. Shipping costs

0,47 EUR per piece
