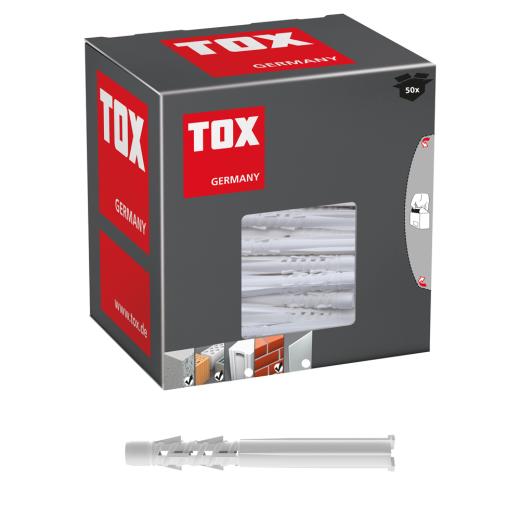

TOX All-purpose frame wall plug Tetrafix XL 6x65 mm | 50 pieces
Product no.: T021100051

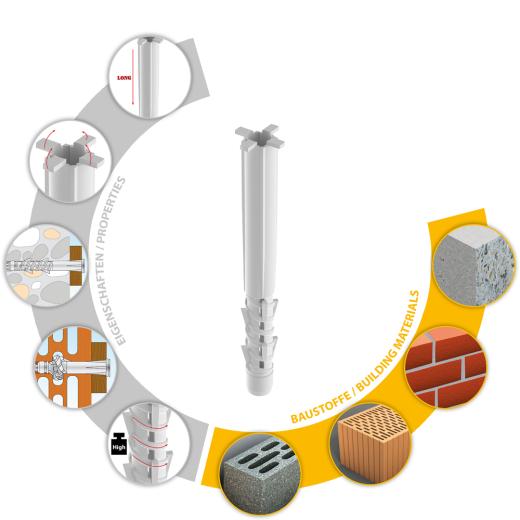

Properties
- Extended shaft for special frame wall plug applications
- Deep anchoring in porous concrete
- Holds secure in almost all building materials
- Automatic knotting or expansion depending on the building material
- Wide range of applications thanks to different shaft lengths
- Removable wall plug cap prevents slippage into the drill hole
- Spiral shape allows high load-bearing values
- All-purpose wall plug for virtually all building materials
- Spiral shaped expansion element
- Extra long shaft lengths for bridging thick, non-load bearing layers
- Removable wall plug capAnti-rotation locks on the fixing neck prevent rotation in the building material

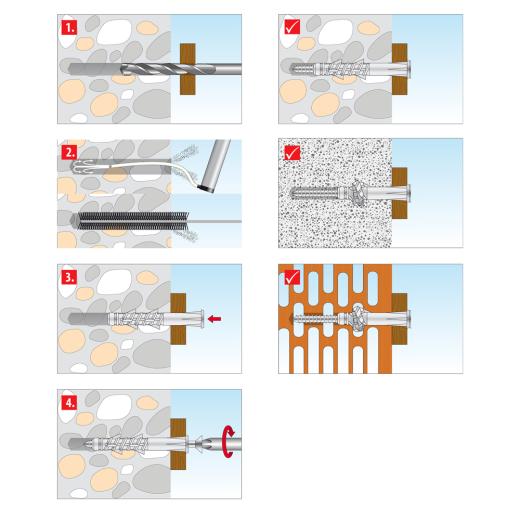

- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- The drill hole in gypsum plasterboard must be made with a wood or metal drill
- Drill into concrete and solid brick with impact
- Minimum screw length = wall plug length + fixture thickness + 5 mm
- Pre-positioned and through installation possible
Technical data:
| Dowel diameter | 6 | [mm] | |
| Dowel length | 65 | [mm] | |
| Screw size | 4,0-5,0 | [ΓΈ mm] | |
| Screw length | ≤ 70mm + tfix | [mm] | |
| Drill hole diameter | do | 6 | [mm] |
| Min. drill hole depth | h1 | 75 | [mm] |
| Min. bolt penetration | hef | 35 | [mm] |
Price:
8,40 EUR
19 % VAT incl. excl. Shipping costs
0,17 EUR per piece
