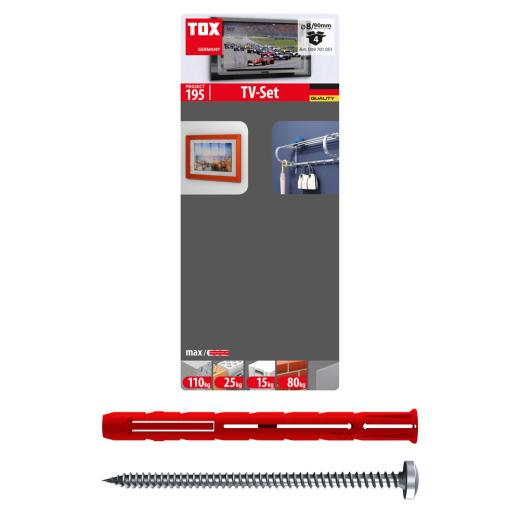

TOX Parallel Expansion Plug TV-Set | 20 pieces
Product no.: T009701051

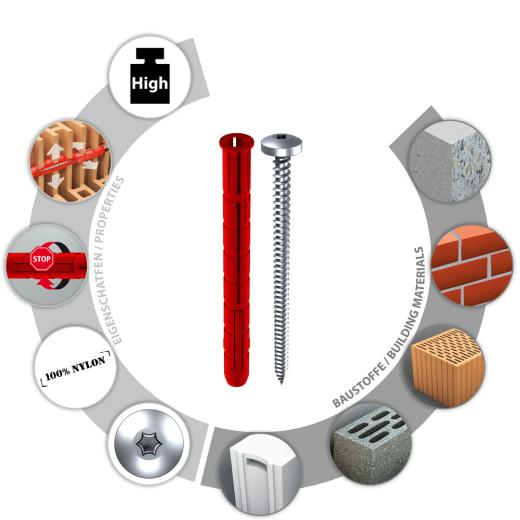

Features
- Ideal for perforated bricks (Poroton) and aerated concrete (Ytong)
- Extremely high holding values
- Expands in multiple directions
- Rotating wings prevent rotation in the borehole
- 100% nylon
- Long expansion range for secure anchoring
- Also suitable for metric threaded rods
Description & Application
- Multiple expansion through two 2-part split expanders, offset by 90° to each other, with movable rotating wings and flexible anchor neck
- Large anchoring depth

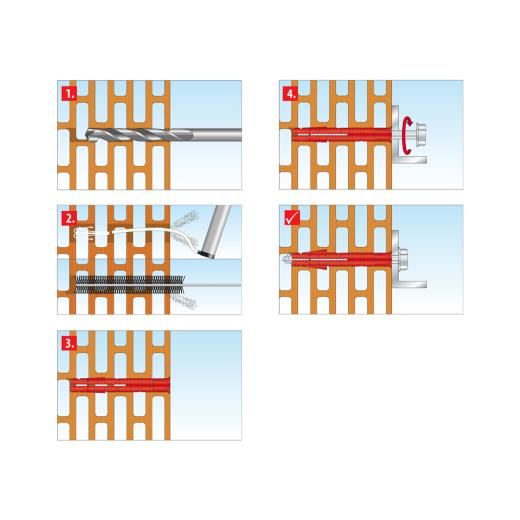

Processing & Installation
- Create a borehole with the size of the anchor diameter
- Drill in perforated bricks without impact, so that the ribs in the perforated bricks do not break
- Drill in concrete and solid brick with impact
- Minimum screw length = anchor length + attachment thickness + 5 mm
- Pre-insertion installation
- In solid brick with a dense structure, choose the smallest possible screw diameter
Technical Data:
| Anchor diameter | 8 | [mm] | |
| Anchor length | 90 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill bit diameter | do | 8 | [mm] |
| Minimum borehole depth | h1 | 100 | [mm] |
| Minimum set depth | hef | 90 | [mm] |
Price:
35,20 EUR
19 % VAT incl. excl. Shipping costs
1,76 EUR per piece
