Product no.: T017102551
Properties
- Simply knock in: quick and easy
- For metal components
- Knock-in stop prevents premature expansion
- Buttress thread
- Quick and cost-effective through installation
- Nail screw is easy to turn in and out if required
Description and field of application
- 2-part expansion element with knock-in stop
- Pre-assembled, galvanised zinc-plated nail screw with buttress thread
- Cylinder head and PZ drive

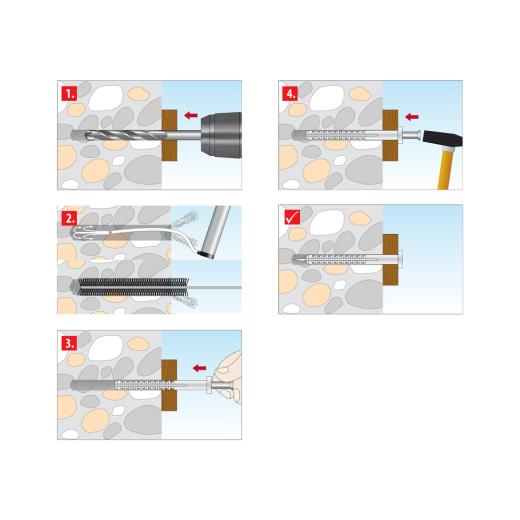

Processing and assembly
- For non-countersunk installation (cylinder head with internal counterbore)
- In perforated brick, the expansion element must expand in at least one internal web and be drilled without impact
- Through installation
Technical data:
Dowel diameter |
6 |
[mm] |
Dowel length |
35 |
[mm] |
Screw size |
- |
[ΓΈ mm] |
Screw length |
- |
[mm] |
Drill hole diameter |
do |
6 |
[mm] |
Min. drill hole depth |
h1 |
45 |
[mm] |
Min. bolt penetration |
hef |
25 |
[mm] |

Price:
12,00 EUR
19 % VAT incl. excl. Shipping costs
0,24 EUR per piece
