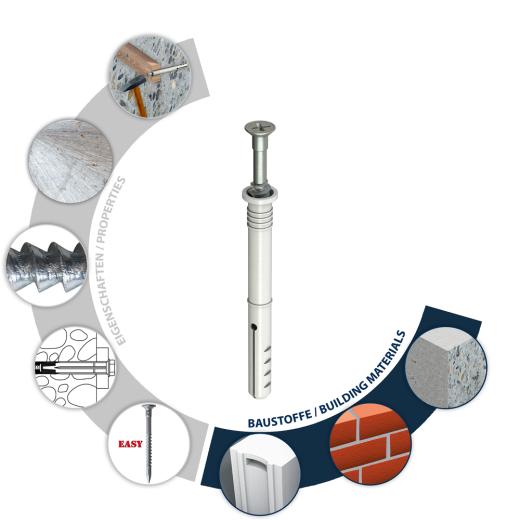

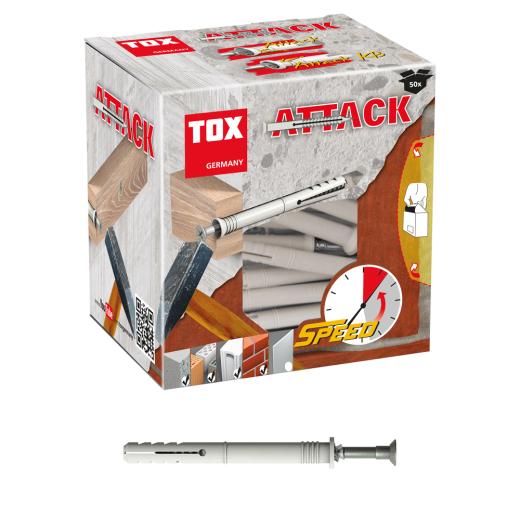

TOX Nail wall plug Attack KB 6x50 mm | 50 pieces
Product no.: T017102571
Properties
- Simply knock in: quick and easy
- For metal components
- Knock-in stop prevents premature expansion
- Buttress thread
- Quick and cost-effective through installation
- Nail screw is easy to turn in and out if required
Description and field of application
- 2-part expansion element with knock-in stop
- Pre-assembled, galvanised zinc-plated nail screw with buttress thread
- Cylinder head and PZ drive

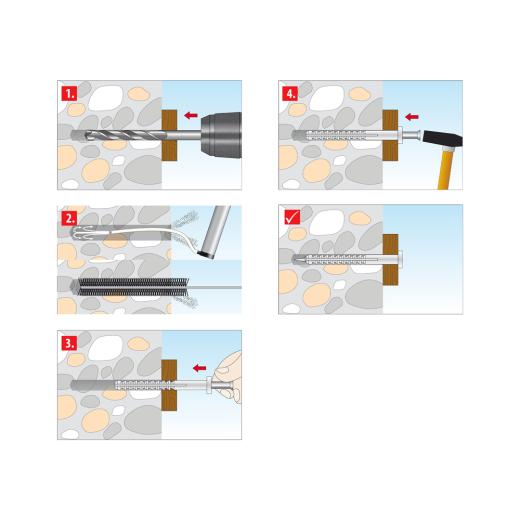

Processing and assembly
- For non-countersunk installation (cylinder head with internal counterbore)
- In perforated brick, the expansion element must expand in at least one internal web and be drilled without impact
- Through installation
Technical data:
| Dowel diameter | 6 | [mm] | |
| Dowel length | 50 | [mm] | |
| Screw size | - | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 6 | [mm] |
| Min. drill hole depth | h1 | 60 | [mm] |
| Min. bolt penetration | hef | 25 | [mm] |
Price:
13,80 EUR
19 % VAT incl. excl. Shipping costs
0,28 EUR per piece
