Product no.: T02210244
Properties
- Quick and easy thanks to impact installation
- No thermal bridges thanks to plastic nails
- Resistant to impacts of weather and rotting
- Secure hold for insulation boards
Description and field of application
- 3-part expansion element
- Shaft with anti-rotation locks
- Plate Ø 50 mm
- Plastic nail for installation with no thermal bridges

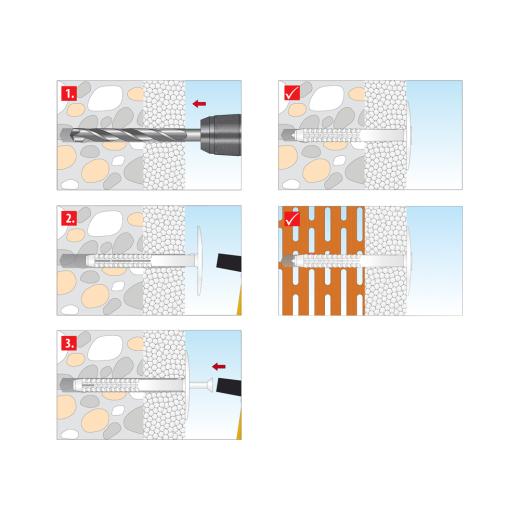

Processing and assembly
- Drill into perforated brick in a rotary motion without impact to prevent webs from breaking away
- Drill into concrete and solid brick with impactSimply knock the plastic nail into the inserted expansion element
- The wall plug is used to fix insulation boards not requiring approval, either in interiors or exteriors in accordance with DIN 1102

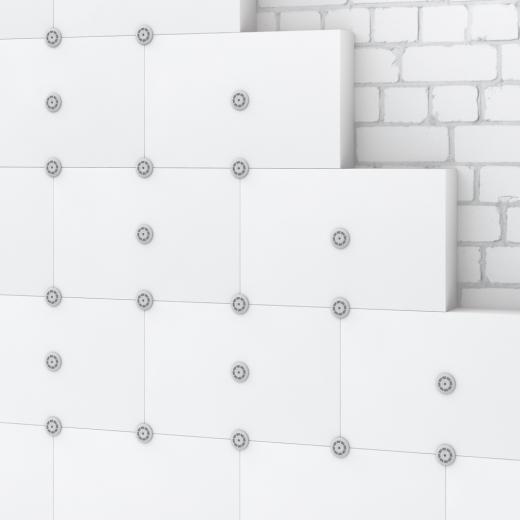

- Where insulation boards are plastered, use 6 wall plugs per m²
- 4 fixings per m² are sufficient for non-plastered insulation boards
- Insulation boards may be fixed to concrete surfaces only if they have a total load of maximum 0.15 kN/m²
- Through installation
Technical data:
Dowel diameter |
8 |
[mm] |
Dowel length |
100 |
[mm] |
Screw size |
- |
[ø mm] |
Screw length |
- |
[mm] |
Drill hole diameter |
do |
8 |
[mm] |
Min. drill hole depth |
h1 |
115 |
[mm] |
Min. bolt penetration |
hef |
40 |
[mm] |
Price:
23,90 EUR
19 % VAT incl. excl. Shipping costs
0,48 EUR per piece
