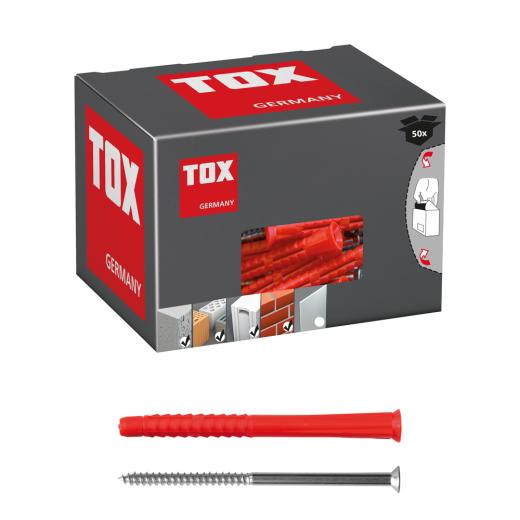

TOX All-purpose long anchor Constructor 8x80 mm + screw | 50 pieces
Product no.: T022102301
Properties

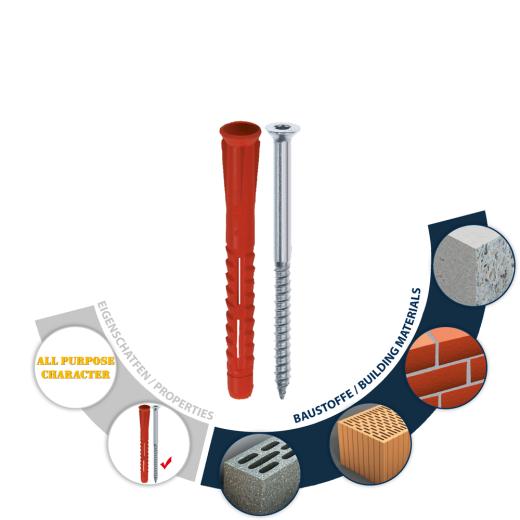

- Optimally aligned components
- All-purpose properties
Description and field of application
- Constructor + screw: 3-part expansion element with anti-rotation locks and galvanised zinc-plated screw with countersunk head and TX drive
- Constructor Ø 10 mm: In combination with insulation plate Disc 75/10 or Disc 100/10 for fixing insulation boards

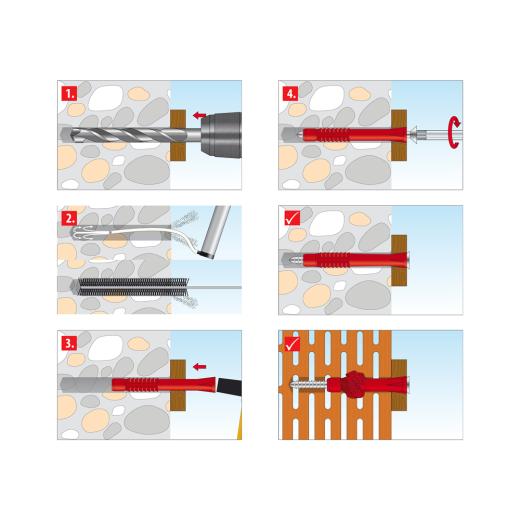

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and hollow blocks without impact
- The wall plug design draws the object to be installed onto the brickwork
- Through installation
Technical data:
| Dowel diameter | 8 | [mm] | |
| Dowel length | 80 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 8 | [mm] |
| Min. drill hole depth | h1 | 90 | [mm] |
| Min. bolt penetration | hef | 50 | [mm] |
Price:
34,50 EUR
19 % VAT incl. excl. Shipping costs
0,69 EUR per piece
