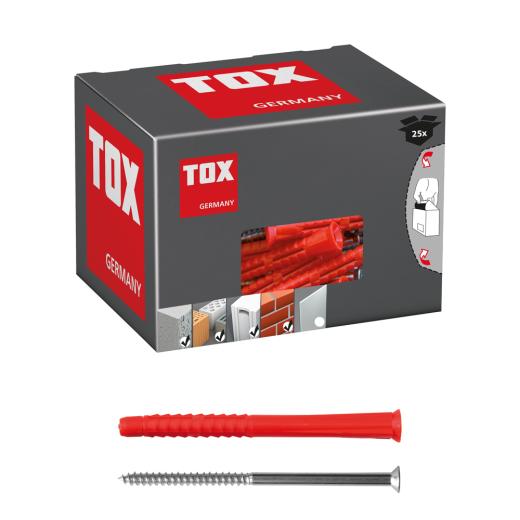

TOX All-purpose long anchor Constructor 10x160 mm + screw | 25 pieces
Product no.: T022102521
Properties
- Optimally aligned components

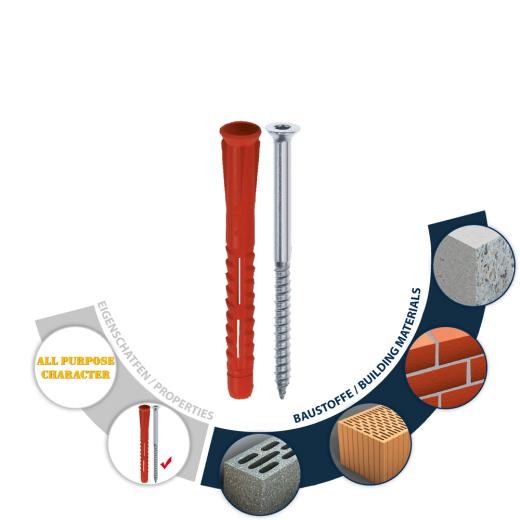

- All-purpose properties
Description and field of application
- Constructor + screw: 3-part expansion element with anti-rotation locks and galvanised zinc-plated screw with countersunk head and TX drive
- Constructor Ø 10 mm: In combination with insulation plate Disc 75/10 or Disc 100/10 for fixing insulation boards

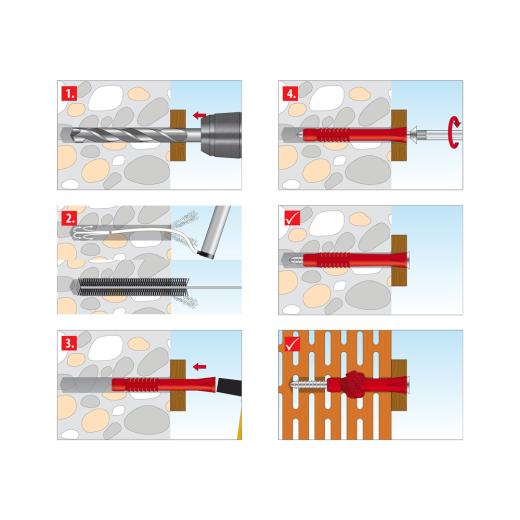

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick and hollow blocks without impact
- The wall plug design draws the object to be installed onto the brickwork
- Through installation
Technical data:
| Dowel diameter | 10 | [mm] | |
| Dowel length | 160 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 175 | [mm] |
| Min. bolt penetration | hef | 60 | [mm] |
Price:
42,60 EUR
19 % VAT incl. excl. Shipping costs
1,70 EUR per piece
