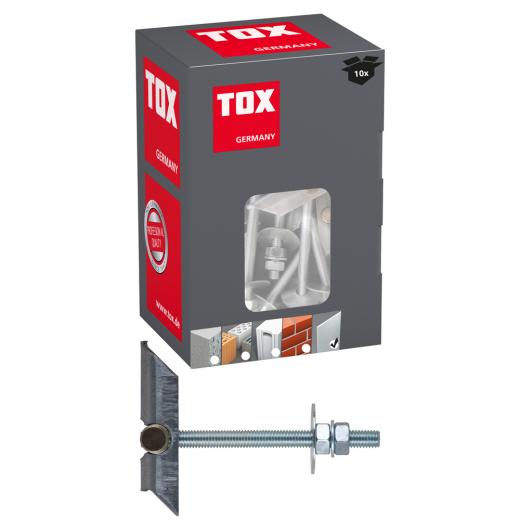

TOX Toggle plug Spagat Pro M8 | 10 pieces
Product no.: T023100171

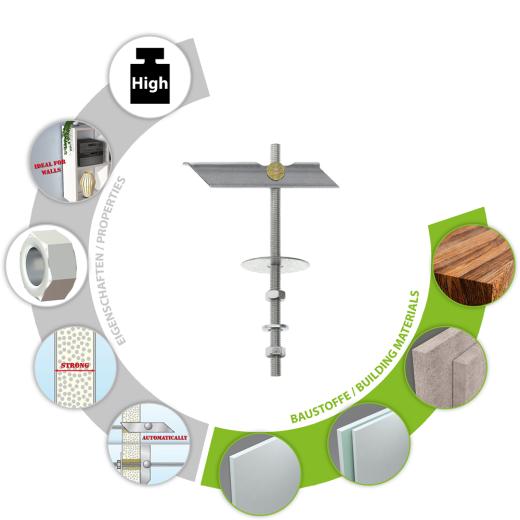

Properties
- Extremely high load-bearing values for cavities
- Ideally suited for wall installation
- Universal fixing points with hexagonal nuts
- For bridging large wall thicknesses
- For single and double sheet boards
- During wall installation, the tilting mechanism will adjust automatically to the angle most suitable for the load capacity
Description and field of application
- Galvanised zinc-plated metal cavity wall plug with a tilting wing, threaded rod, large and small metal washer and 2 hexagonal nuts (SW 13)
- For wall and ceiling installation
- For gypsum plasterboard, gypsum fibre board and chipboard as well as hollow bricks and pre-stressed hollow concrete ceiling boards

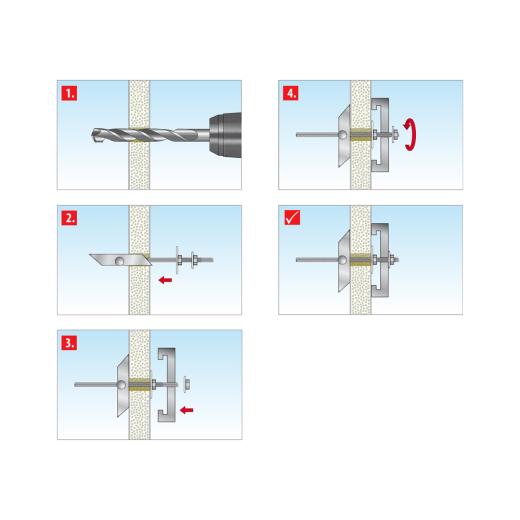

Processing and assembly
- Observe the minimum cavity depth, board thickness and drill Ø
- Observe the vertical installation position for wall installations
- Pre-positioned installation
Technical data:
| Dowel diameter | M8 | [mm] | |
| Dowel length | 100 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 20 | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
28,30 EUR
19 % VAT incl. excl. Shipping costs
2,83 EUR per piece
