TOX Wash stand wall plug Oase Spagat M10 | 10 pieces
Product no.: T024100221
Properties
- Automatic expansion
- Bridges large boards and fixing thicknesses
Description and field of application

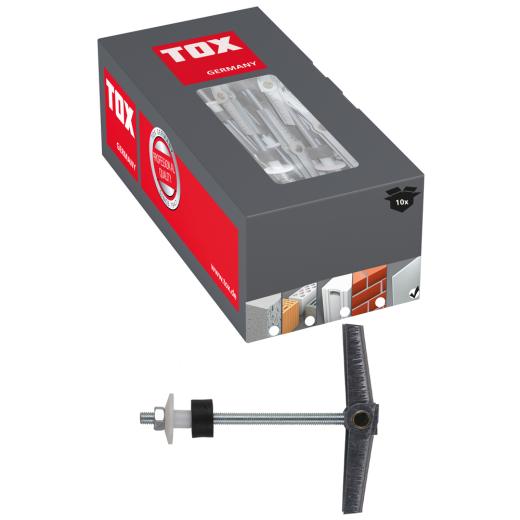

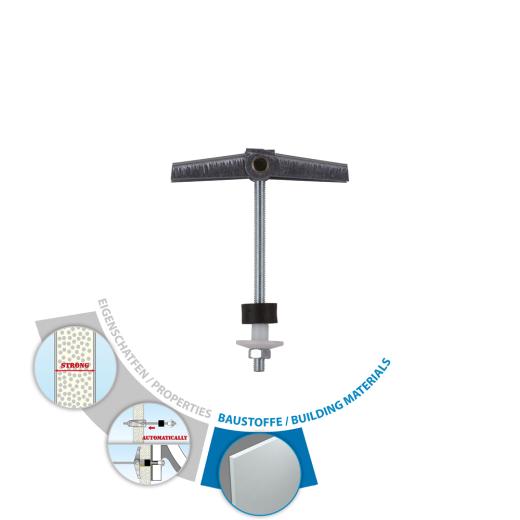

- Galvanised zinc-plated spring toggle wall plug with 2 wings and rubber support disk, plastic flange disk, hexagonal nut (SW 17) and M10 threaded rod
- For wall boards up to 100 mm in size
- For gypsum plasterboard and gypsum fibre board with a minimum size of 18 mm

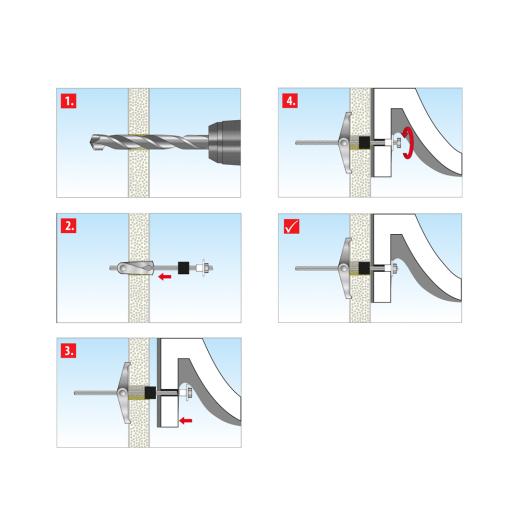

Processing and assembly
- Observe the minimum cavity depth, board thickness and drill Ø
- For wall boards up to 100 mm in size|For gypsum plasterboard and gypsum fibre board with a minimum size of 18 mm
- Observe the vertical installation position of the wing for wall installations
- DIN 18183 must be observed when installing washbasins on plasterboard walls, and DIN 4103-2 must be observed for gypsum wall boards
- Pre-positioned installation
Technical data:
| Dowel diameter | M10 | [mm] | |
| Dowel length | 180 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 30 | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
100,30 EUR
19 % VAT incl. excl. Shipping costs
10,03 EUR per piece
