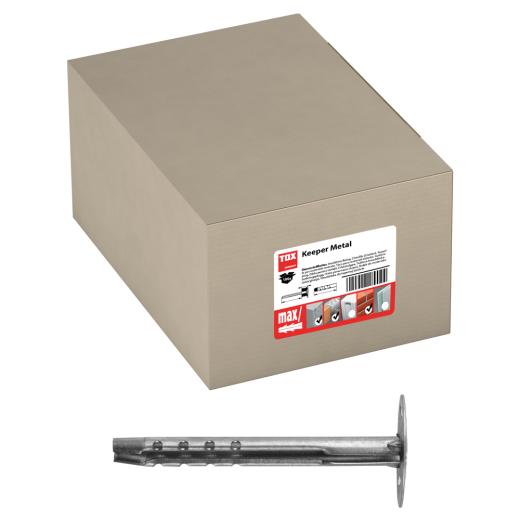

Product no.: T027100211

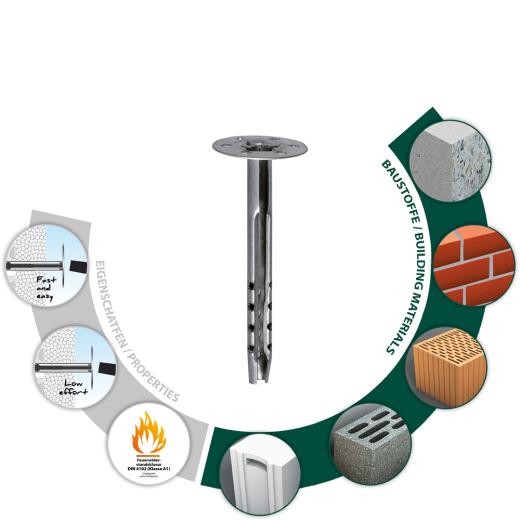

Properties
- Quick and easy thanks to impact installation
- Fire resistant in accordance with DIN 4102 (class A1)
- Also suitable for the underside of ceilings
- Little effort required thanks to impact installation
Description and field of application
- Spring steel clamping sleeve and zinc-plated flanged plate (ø 35 mm) made of sheet steel

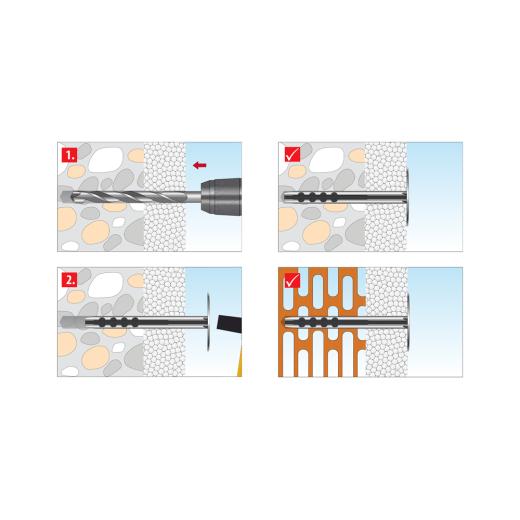

Processing and assembly
- Make a drill hole the size of the wall plug diameter
- Drill into perforated brick without impact to prevent webs from breaking away
- Drill into concrete and solid brick with impact
- Through installation
Technical data:
| Dowel diameter |
8 |
[mm] |
| Dowel length |
90 |
[mm] |
| Screw size |
- |
[ø mm] |
| Screw length |
- |
[mm] |
| Drill hole diameter |
do |
8 |
[mm] |
| Min. drill hole depth |
h1 |
100 |
[mm] |
| Min. bolt penetration |
hef |
50 |
[mm] |

Price:
43,30 EUR
19 % VAT incl. excl. Shipping costs
0,43 EUR per piece
