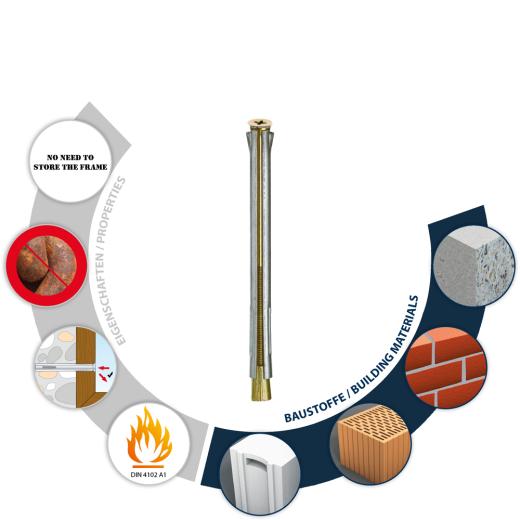

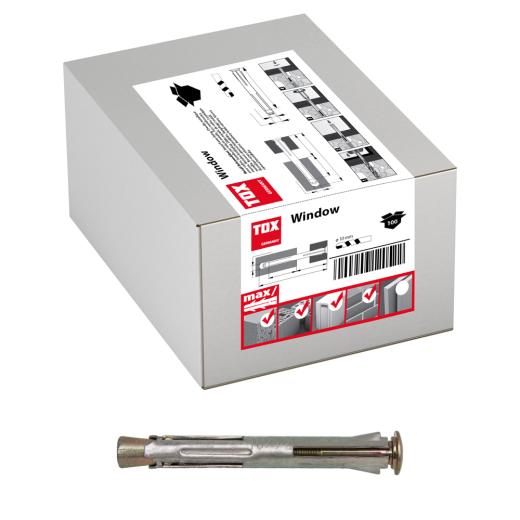

TOX Metal frame wall plug Window 10x182 mm | 100 pieces
Product no.: T02710117
Properties
- Tensile and compression-proof fixing
- No need to lay down or wedge the frame
- Corrosion protection via aluminium zinc coating
- Fire resistant in accordance with DIN 4102 (class A1)
Description and field of application
- Galvanised zinc-plated metal frame wall plug, pre-assembled with M6 metric countersunk screw (PZ3 drive)
- Fire resistant in accordance with DIN 4102 (class A1)
- Tightening the screw pulls the cone into the sleeve which expands

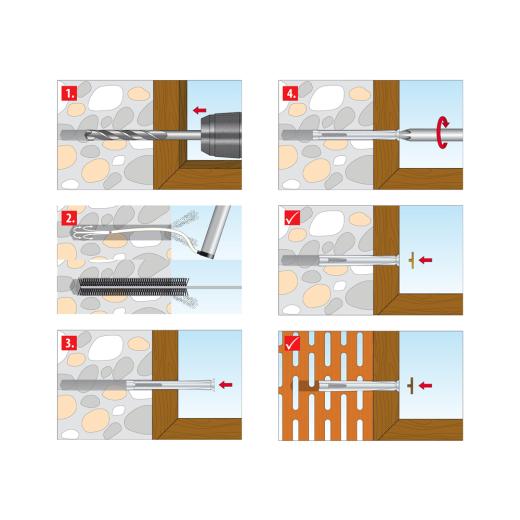

Processing and assembly
- Observe the anchoring depth
- Visually attractive installation is possible thanks to screw caps
- Through installation
Technical data:
| Dowel diameter | 10 | [mm] | |
| Dowel length | 182 | [mm] | |
| Screw size | - | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 200 | [mm] |
| Min. bolt penetration | hef | 30 | [mm] |
Price:
48,90 EUR
19 % VAT incl. excl. Shipping costs
0,49 EUR per piece
