Product no.: T035101111
Properties

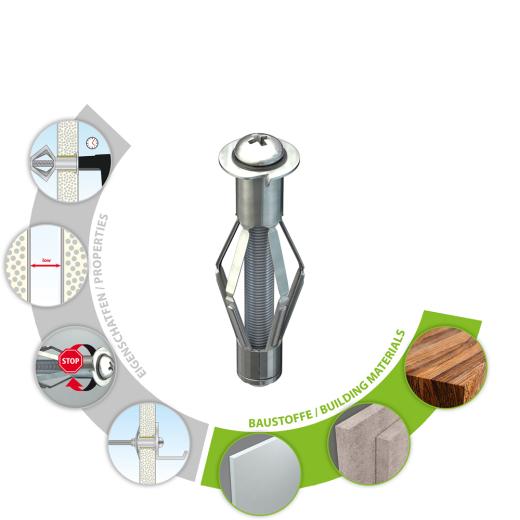

- Quick handling with mounting pliers (can also be mounted without pliers)
- For shallow cavity depths
- The wall plug cap with anti-rotation lock prevents rotation in the building material
- Suitable for single and double sheet wall boards
Description and field of application

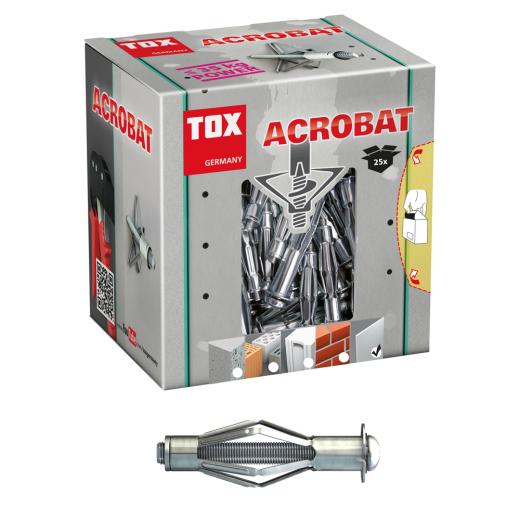

- Galvanised zinc-plated metal cavity wall plug with wall plug cap, anti-rotation locks and metric screw with hexagonal (SW 13) or slotted and cross-slotted head
- When inserting the wall plug, the expansion segments cover a large surface on the back of the board
- Fire resistant in accordance with DIN 4102 (class A1)

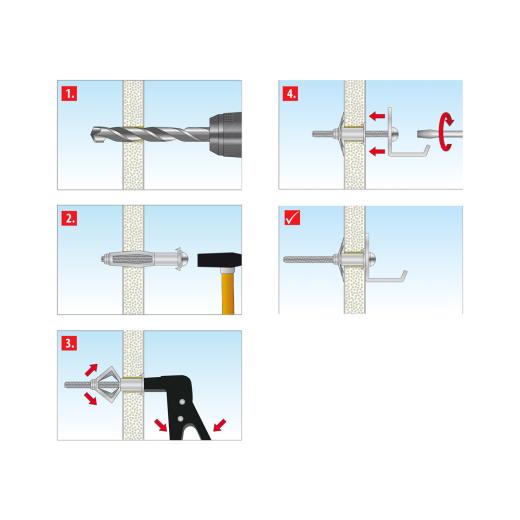

Processing and assembly
- Preferably, the wall plug should be inserted with TOX mounting pliers Acrobat Speed-Plus or Acrobat Speed-Pro, but insertion with an electric or manual screwdriver is also possible
- Be sure to observe the specified drill Ø
- The anti-rotation locks can be pressed back into their original shape if required (e.g. on tiled gypsum plasterboard)
- Observe the minimum cavity depth and board thickness
- The drill hole in gypsum plasterboard must be made with a wood or metal drill
- Pre-positioned installation
Technical data:
Dowel diameter |
12 |
[mm] |
Dowel length |
37 |
[mm] |
Screw size |
- |
[ø mm] |
Screw length |
- |
[mm] |
Drill hole diameter |
do |
12 |
[mm] |
Min. drill hole depth |
h1 |
- |
[mm] |
Min. bolt penetration |
hef |
- |
[mm] |
Price:
19,90 EUR
19 % VAT incl. excl. Shipping costs
0,80 EUR per piece
