TOX Insulation support Keeper 8x140 mm | 250 pieces

Product no.: T048100051

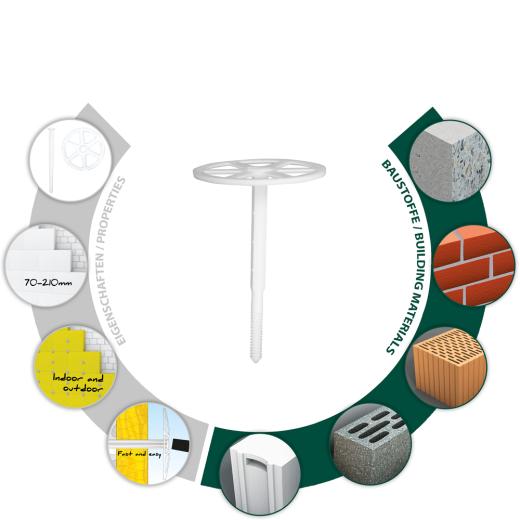

Properties

• 2-part
• Several new lengths for up to 210 mm insulations
• For insulation wool in interiors and exteriors
• Quick and easy impact installation
• Resistant to impacts of weather and rotting
• No additional expansion element required
• No thermal bridges

Description and field of application

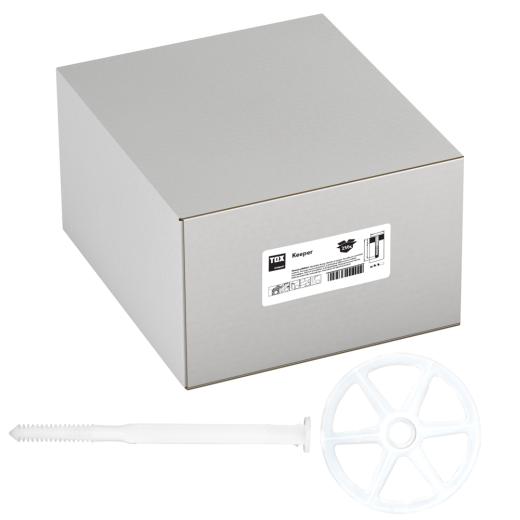

• Wall plug element made of impact-resistant plastic, with longitudinal ribs, shaft and plate Ø 90 mm
• Quick and easy
• 2-part, packaging volume reduced by up to 75% compared to single-part insulation holders

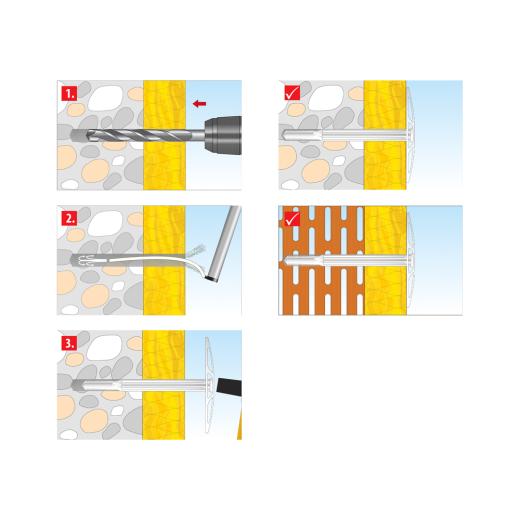

Processing and assembly

• Drill into perforated brick without impact to prevent webs from breaking away
• Drill into concrete and solid brick with impact
• Join wall plug pin and plate
• Knock in wall plug
• Through installation

---



Technical data:

Dowel diameter	8		[mm]
Dowel length	140		[mm]
Screw size	-		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	8	[mm]
Min. drill hole depth	h1	150	[mm]
Min. bolt penetration	hef	30	[mm]

Price:

72,80 EUR

19 % VAT incl. excl. Shipping costs

0,29 EUR per piece
