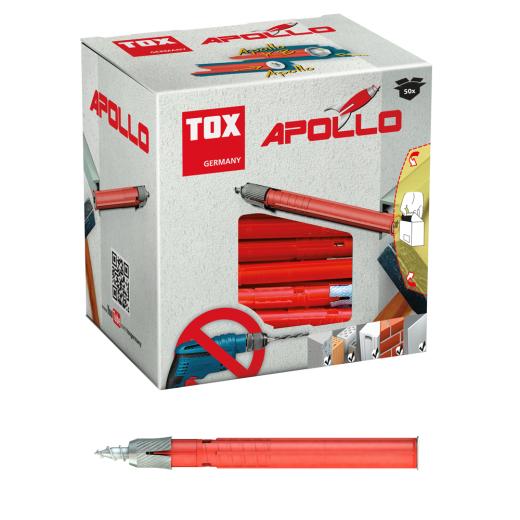

TOX All-purpose frame wall plug Apollo 8x140 mm | 50 pieces
Product no.: T049101161

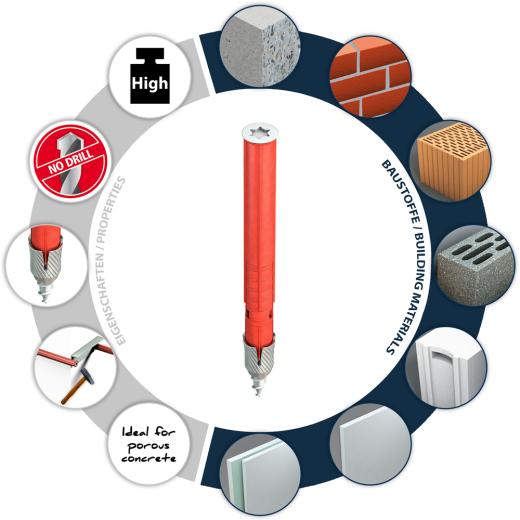

Properties
- Ideal for porous concrete P2: simply knock in + tighten: quick and easy
- Holds secure in almost all building materials
- Metal tip allows high load-bearing values
- Can be used directly with pre-assembled screw
Description and field of application
- 3-part expansion element with metal tip
- Shaft with anti-rotation locks
- Wall plug is completely pre-assembled with galvanised zinc-plated countersunk screw with TX drive

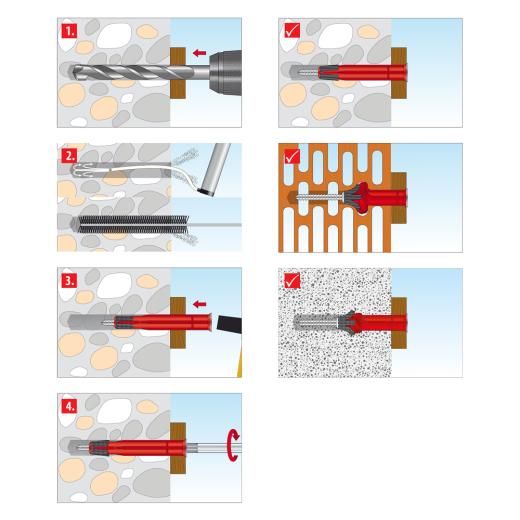

Processing and assembly
- In porous concrete P2, simply knock in with no pre-drilling required
- After inserting the Apollo, the screw must be tightened – in porous concrete, the optimum load-bearing value is achieved after 6 turns of the screw
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking awayHolds secure in concrete and solid brick by expansion
- Holds secure in perforated brick by expansion and knotting
- Holds secure behind gypsum plasterboard by knotting
- In porous concrete (aerated concrete), deep interlocking occurs (knotting)
- Through installation
Technical data:
| Dowel diameter | 8 | [mm] | |
| Dowel length | 140 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 8 | [mm] |
| Min. drill hole depth | h1 | 150 | [mm] |
| Min. bolt penetration | hef | 45 | [mm] |
Price:
35,30 EUR
19 % VAT incl. excl. Shipping costs
0,71 EUR per piece
