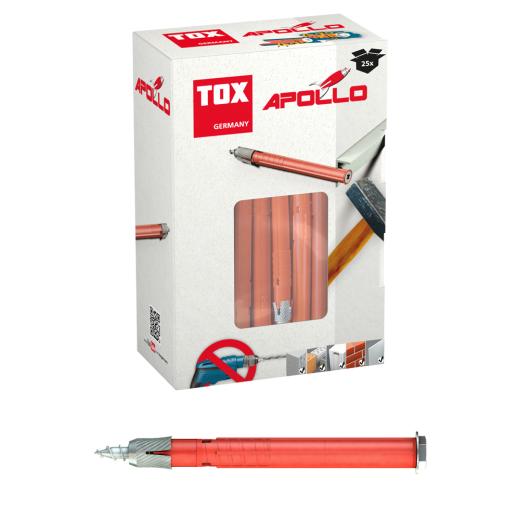

TOX All-purpose frame wall plug Apollo KB 10x100 mm | 25 pieces
Product no.: T049101531

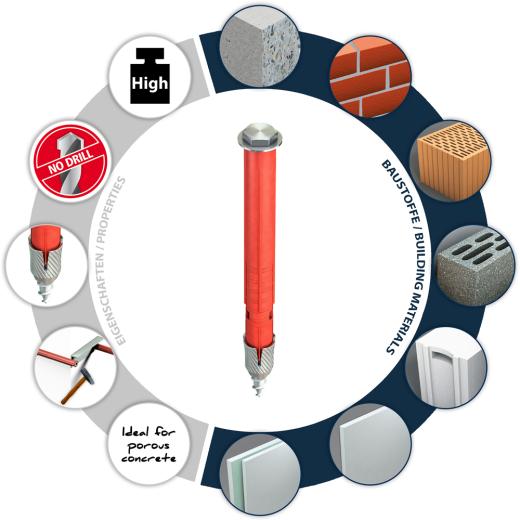

Properties
- Ideal for porous concrete P2: simply knock in + tighten: quick and easy
- Holds secure in almost all building materials
- Metal tip allows high load-bearing values
- Can be used directly with pre-assembled screw
Description and field of application
- 3-part expansion element with metal tip
- Shaft with anti-rotation locks
- Wall plug is completely pre-assembled with galvanised zinc-plated hexagonal screw with SW 13 drive

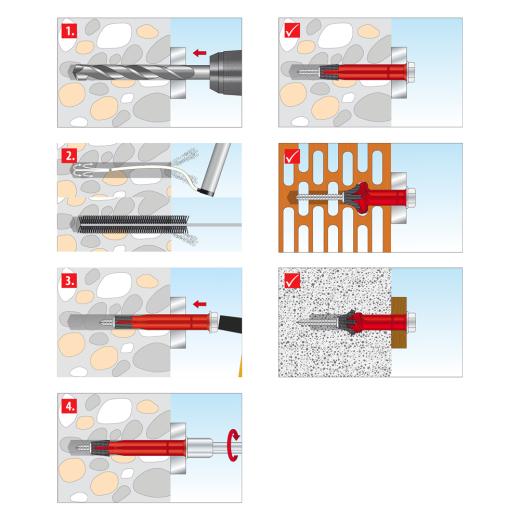

Processing and assembly
- In porous concrete P2, simply knock in with no pre-drilling required
- After inserting the Apollo KB, the screw must be tightened – in porous concrete, the optimum load-bearing value is achieved after 6 turns of the screw
- Drill into perforated brick and gypsum plasterboard in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- Holds secure in concrete and solid brick by expansion
- Holds secure in perforated brick by expansion and knotting
- Holds secure behind gypsum plasterboard by knotting
- In porous concrete (aerated concrete), deep interlocking occurs (knotting)
- Through installation
Technical data:
| Dowel diameter | 10 | [mm] | |
| Dowel length | 100 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 10 | [mm] |
| Min. drill hole depth | h1 | 110 | [mm] |
| Min. bolt penetration | hef | 55 | [mm] |
Price:
21,70 EUR
19 % VAT incl. excl. Shipping costs
0,87 EUR per piece
