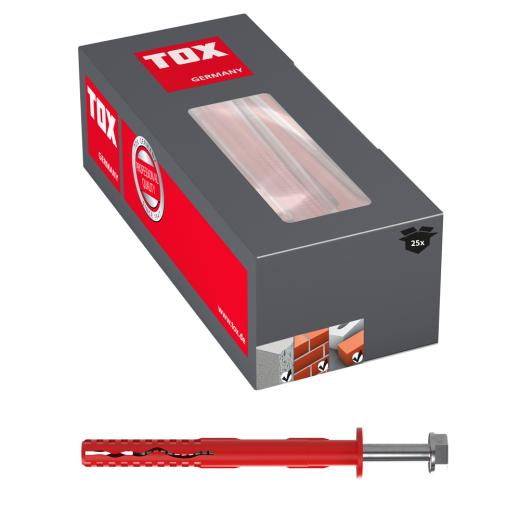

TOX Frame wall plug Fassad XL 14x260 mm | 25 pieces

Product no.: T067101241

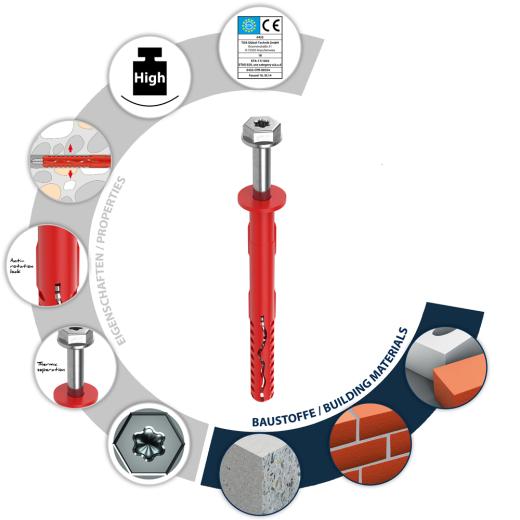

Properties

• High bending moment
• Approved by building authorities
• Optimum distribution of force by 2-part expansion
• Rotary protection for secure installation
• Collar flange for thermal separation and to prevent contact corrosion
• Key screw SW 17 with TX50 internal drive for narrow components and preformed washers for optimum transfer of force

Description and field of application

• 2-part expansion element with anti-rotation lock

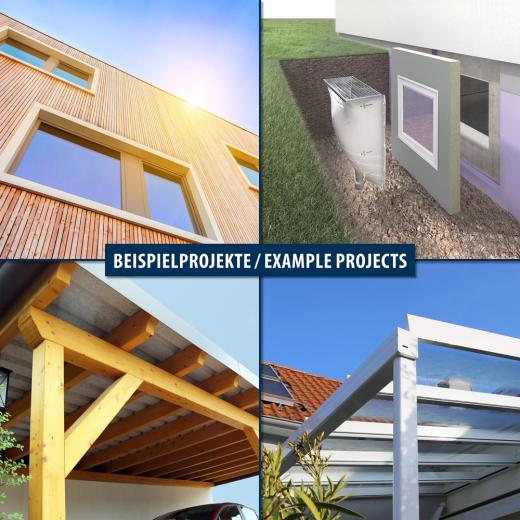

• For fixing façade and roof sub-structures, light shafts, etc.
• The Fassad XL is supplied as a fixing set with screw
• Hight bending moment for especially heavy façades

Processing and assembly

• The galvanised zinc-plated screw may be used outdoors, in industrial atmospheres and near the sea with a suitable protective coating
• Through installation

---



Technical data:

Dowel diameter	14		[mm]
Dowel length	260		[mm]
Screw size	-		[ø mm]
Screw length	-		[mm]
Drill hole diameter	do	14	[mm]
Min. drill hole depth	h1	85	[mm]
Min. bolt penetration	hef	70	[mm]

Price:

119,50 EUR

19 % VAT incl. excl. Shipping costs

4,78 EUR per piece
