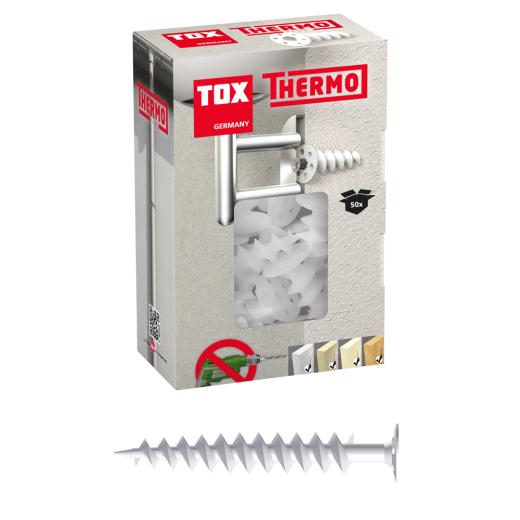

TOX Insulation wall plug Thermo 155 mm | 50 pieces

Product no.: T072100311

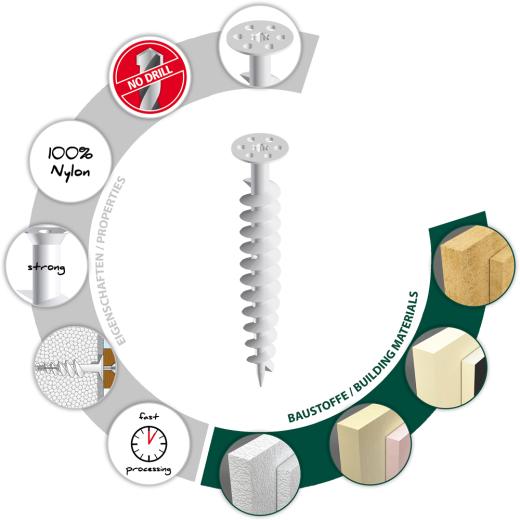

Properties

• TOX patent: Use possible without pre-drilling or special tools
• Effectively prevents thermal bridges
• No pressure load on the façade
• Quick handling and immediately load-bearing
• Reinforced wall plug neck prevents possible twisting off
• 100% nylon

Description and field of application

• Insulation wall plug with rough, conical thread and flat head TX40 drive
• Slot for chipboard screw Ø 4.5 - 5.0 mm
• Wide range of lengths

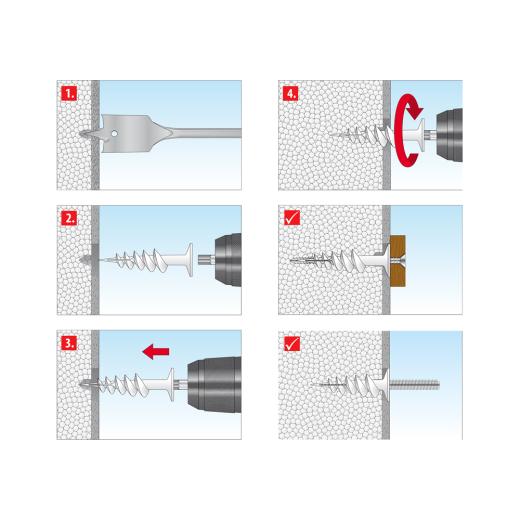

Processing and assembly

• Screw insulation wall plug without pre-drilling directly into the substrate
• Pre-drill into wood fibre boards with Ø 6 mm
• In order to prevent water ingress after installation, close the ring gap between the edge of the wall plug and the plaster with sealing adhesive or acrylic which can be painted over
• Pre-positioned installation

---



Technical data:

Dowel diameter	18		[mm]
Dowel length	155		[mm]
Screw size	4,5-5,0		[ø mm]
Screw length	≤ 50mm + tfix		[mm]
Drill hole diameter	do	-	[mm]
Min. drill hole depth	h1	-	[mm]
Min. bolt penetration	hef	155	[mm]

Price:

47,40 EUR

19 % VAT incl. excl. Shipping costs

0,95 EUR per piece
