TOX Insulation wall plug Thermo Plus 85 mm | 50 pieces
Product no.: T072100441
Properties

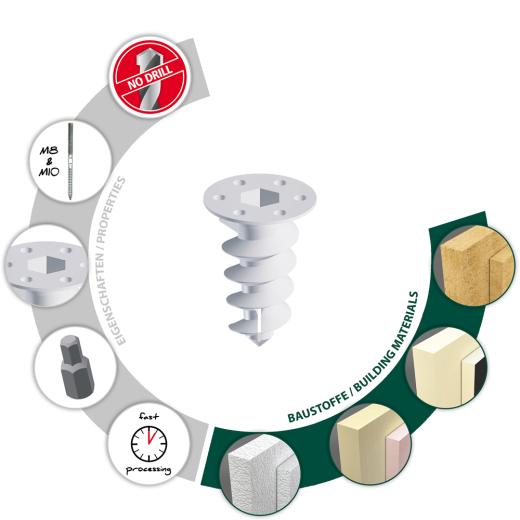

- TOX patent: Use possible without pre-drilling or special tools
- Effectively prevents thermal bridges
- No pressure load on the façade
- Quick handling and immediately load-bearing
- Suitable for M8 and M10 hanger bolts
- SW 12 internal drive with included bit for high transfer of force
- Insulation wall plug with rough, conical thread and flat head
- With hexagon socket drive (SW 12) with slot for wood screw Ø 8.0 - 10.0 mm or M8 - M10 hanger bolt
- Suitable SW 12 bit is included in each package

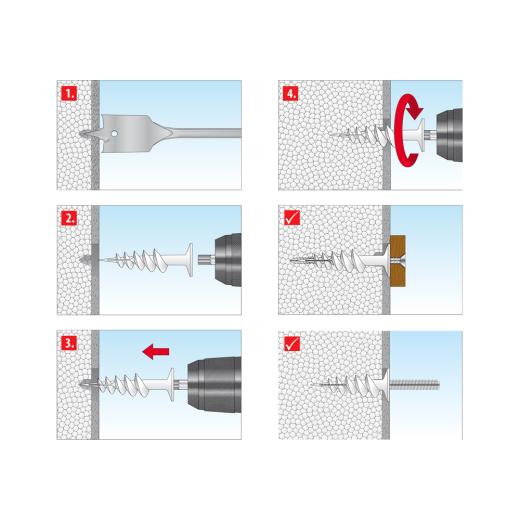

- Screw wall plug into non-plastered insulation material without pre-drilling with an electric drill or screw driver
- Remove the plaster on plastered insulation material with a drill Ø 24 - 25 mm
- Pre-drill into wood fibre boards with Ø 12 mm
- In order to prevent water ingress after installation, close the ring gap between the edge of the wall plug and the plaster with sealing adhesive or acrylic which can be painted over
- Pre-positioned installation
Technical data:
| Dowel diameter | 24 | [mm] | |
| Dowel length | 85 | [mm] | |
| Screw size | 8,0-10,0 | [ø mm] | |
| Screw length | ≤ 50mm + tfix | [mm] | |
| Drill hole diameter | do | - | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | 85 | [mm] |
Price:
35,20 EUR
19 % VAT incl. excl. Shipping costs
0,70 EUR per piece
