Product no.: T072600351

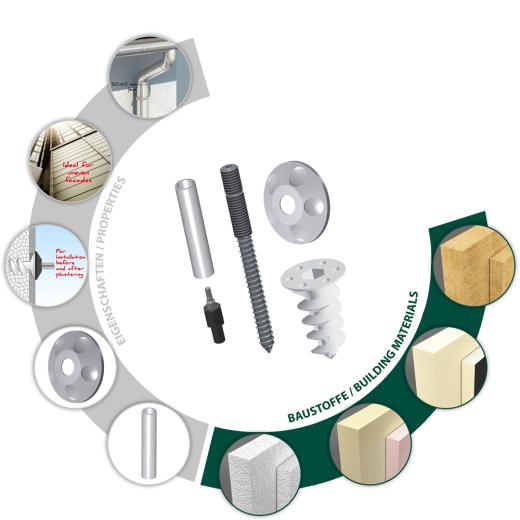

Properties
- Variable down pipe fixing for down pipe distance 30-60 mm
- Ideal for uneven façades
- For installation before and after plaster work
- Flexible cap protects from rain and splashing water
- Protection sleeve protects the thread from dirt during plaster work
Description and field of application

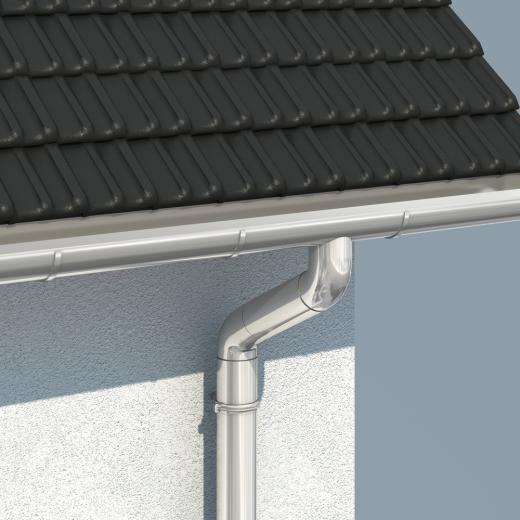

- Specifically for fixing downpipes in ETICS systems
- Adjustable hanger bolt in order to level irregularities in the façade
- Also suitable for installing garden trellis panels, house signs, lighting, air conditioning, alarm systems, electrical installations, etc.
- Thermal separation thanks to Thermo Plus insulation wall plug

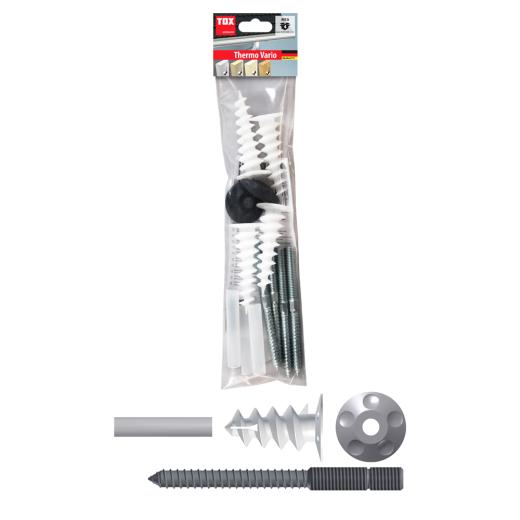

- Thanks to its extensive accessories, installation before and after plaster work on the façade is possible

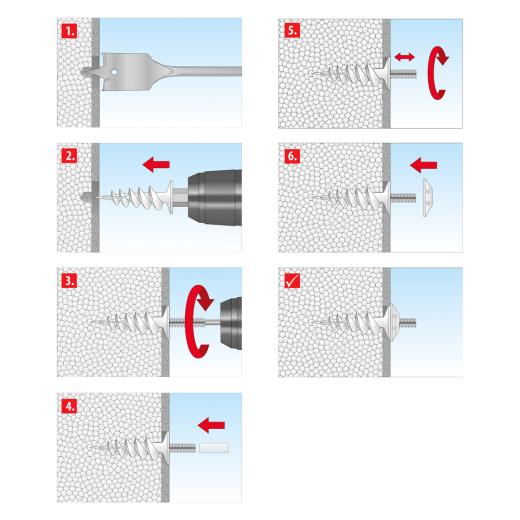

Processing and assembly
- Pre-drill into thick and hard plaster layers (Ø 24 mm)
- Screw in thermal wall plug with included SW 12 bit
- Screw in hanger bolt up to insertion mark
- When installing before plaster work, slide the protection sleeve over the threaded rod (protection against dirt)
- Remove protection sleeve after plaster work
- Set the correct distance to the façade by screwing the threaded rod in or out
- Slide on the cap
- Install the fixture
Technical data:
Dowel diameter |
18 |
[mm] |
Dowel length |
85 |
[mm] |
Screw size |
- |
[ø mm] |
Screw length |
- |
[mm] |
Drill hole diameter |
do |
- |
[mm] |
Min. drill hole depth |
h1 |
- |
[mm] |
Min. bolt penetration |
hef |
85 |
[mm] |
Price:
90,90 EUR
19 % VAT incl. excl. Shipping costs
4,55 EUR per piece
