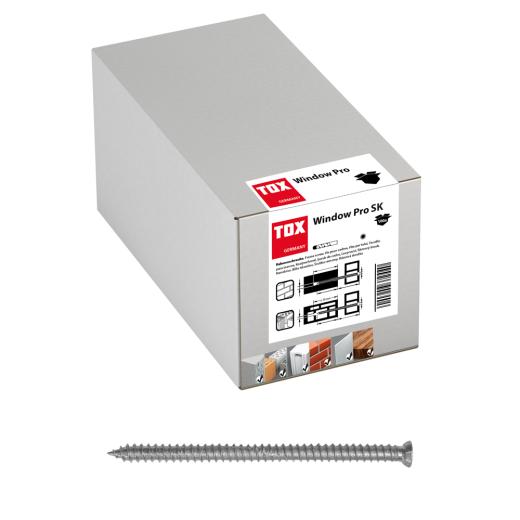

TOX Window frame screw Window Pro SK 7.5x132 mm | 100 pieces
Product no.: T09110139
Properties
- Installation with no additional wall plug
- Tension-free distance installation thanks to thread engagement in the frame and building material
- Quick installation thanks to small drill diameter
- Easy to screw in
- Optimised thread
Description and field of application
- Made of case-hardened steel with self-tapping thread and countersunk head with TX30 drive

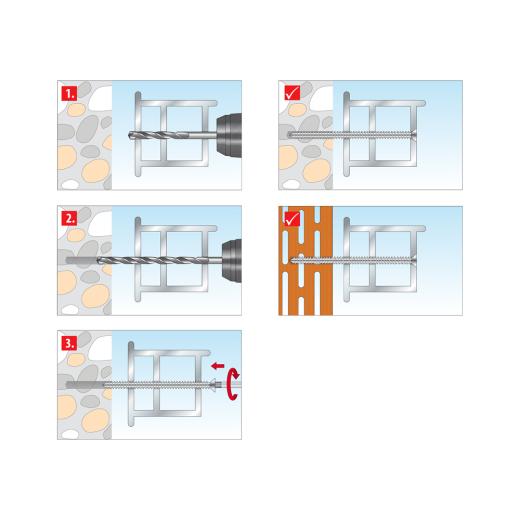

Processing and assembly
- Observe the drill hole Ø and screw-in and drill hole depths of the various building materials
- In cavities, a frame screw length must be selected so that the screw-in depth leads through at least one internal web
- Through installation
Technical data:
| Dowel diameter | 8 | [mm] | |
| Dowel length | 132 | [mm] | |
| Screw size | - | [ø mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 6 | [mm] |
| Min. drill hole depth | h1 | 40 | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
25,90 EUR
19 % VAT incl. excl. Shipping costs
0,26 EUR per piece
