TOX Wash stand wall plug Oase Backside | 20 pieces

Product no.: T04510107

Properties

• Surface protection thanks to plastic washer with flange: surface protection fixing
• Optimally aligned components

Description and field of application

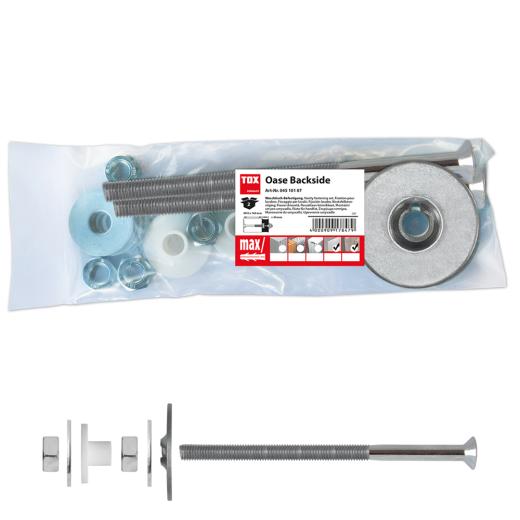

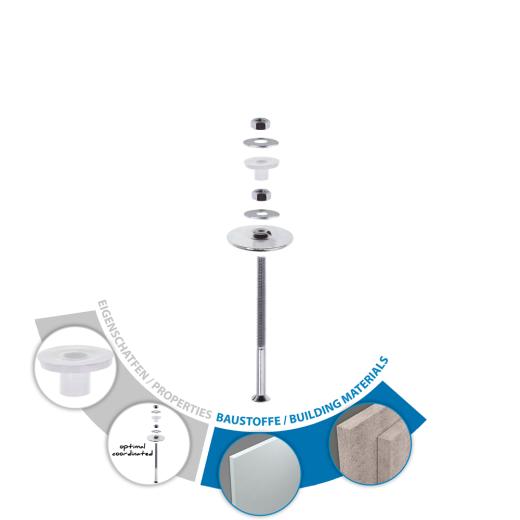

• Fixing set contains:
• M10x160 metric countersunk screw with large metal disk Ø 65 mm and plastic washer with flange
• Hexagonal nuts (SW 17) with metal washer for M10
• Installation via rear wall side up to 100 mm wall thickness
• Load-bearing values depend on the wall

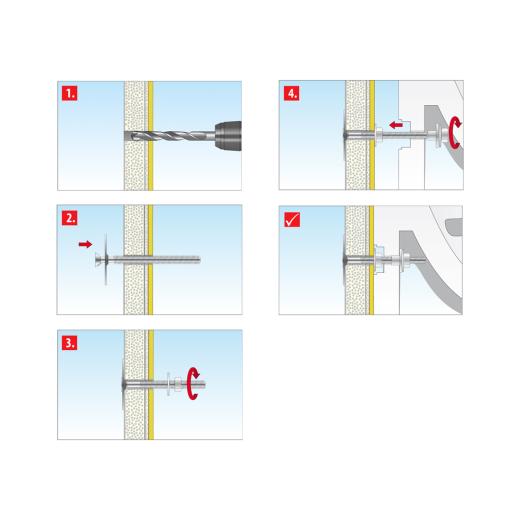

Processing and assembly

• Install the countersunk screw with the metal disk from the back of the wall then secure the object
• The plastic washer with flange provides protection for the ceramic elements when installing the ceramic elements
• DIN 18183 must be observed when installing washbasins on plasterboard walls, and DIN 4103-2 must be observed for gypsum wall boards
• Pre-positioned installation

Price:

53,70 EUR

19 % VAT incl. excl. Shipping costs

2,69 EUR per piece
