TOX Urinal & wash stand mounting Piss-Fix XL M10 | 20 pieces
Product no.: T04510149
Properties
- Surface protection thanks to plastic washer
- With the original Tri wall plug
- Holds secure in almost all building materials
- Provides reliable expansion in solid brick
- Secure knotting in cavities
- No rotation in the drill hole
- Pre-positioned and through installation
Description and field of application

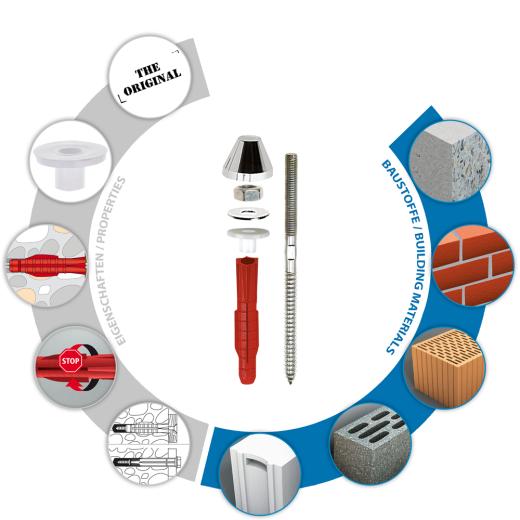

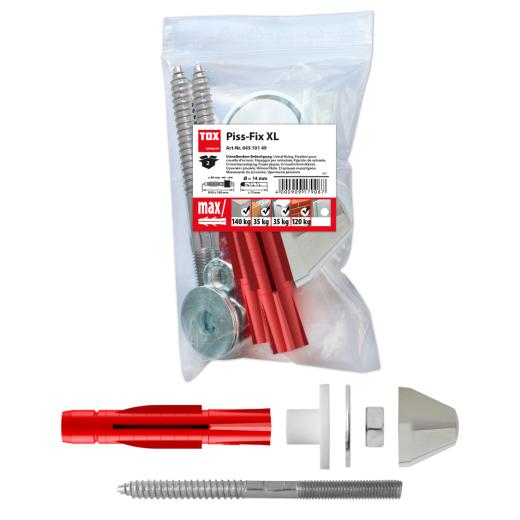

- Fixing set contains:
- Original Tri all-purpose wall plug for virtually all building materials
- Plastic washers
- Small plastic caps (white/chrome-plated)
- Hanger bolts (M10 x 140)
- Washers and hexagonal nuts (SW 17) made of galvanised zinc-plated steel

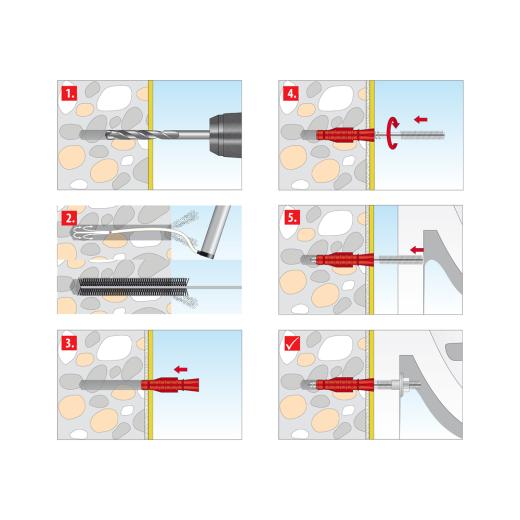

Processing and assembly
- Drill into perforated brick in a rotary motion without impact to prevent the drill hole from becoming too large or webs in the perforated brick from breaking away
- The plastic washer provides protection for the ceramic element during installation
- The cap is attached to the nut
- Pre-positioned installation
Technical data:
| Dowel diameter | 14 | [mm] | |
| Dowel length | 75 | [mm] | |
| Screw size | - | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | 14 | [mm] |
| Min. drill hole depth | h1 | 100 | [mm] |
| Min. bolt penetration | hef | 75 | [mm] |
Price:
33,90 EUR
19 % VAT incl. excl. Shipping costs
1,70 EUR per piece
