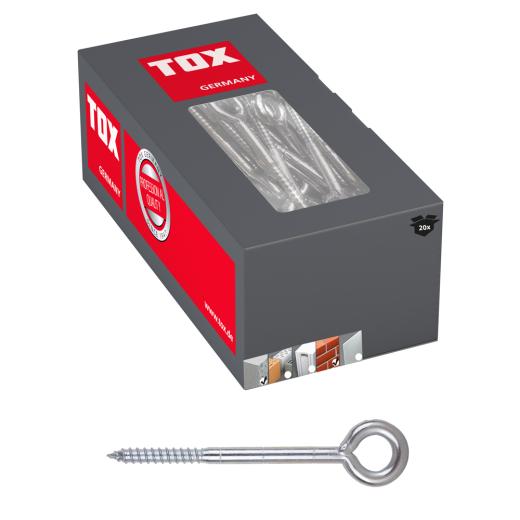

TOX Scaffold anchorage Safe Fix Eye 12x300 mm | 20 pieces
Product no.: T05810112

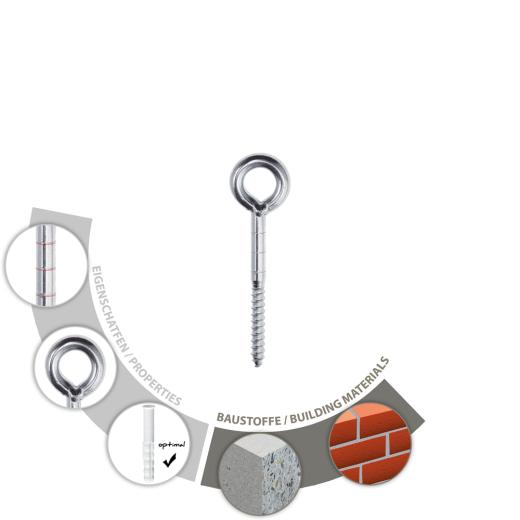

Properties
- Marking for easy checking of the minimum screw-in depth
- Welded eye prevents bending
- Optimally aligned to Safe Fix Eye

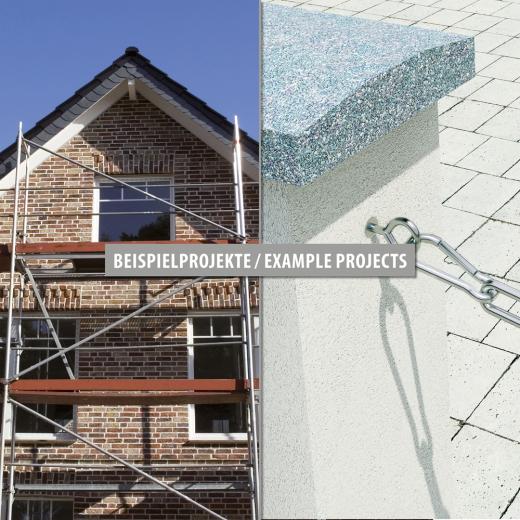

Description and field of application
- Galvanised zinc-plated 12 mm eye screw with 24 mm eye diameter
- High-quality welding prevents the eye from bending
- Screw-in marking for easy visual checking of the insertion depth

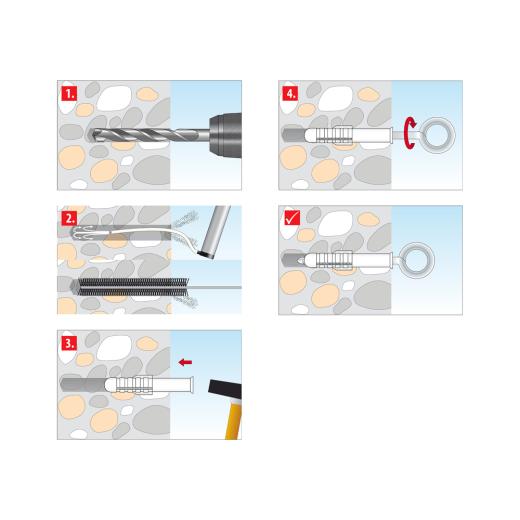

Processing and assembly
- The Safe Fix Eye may be screwed into the Safe Fix only once
- The marking grooves on the Safe Fix Eye scaffold screw indicate the minimum screw-in depth
Technical data:
| Dowel diameter | 12 | [mm] | |
| Dowel length | 300 | [mm] | |
| Screw size | - | [ΓΈ mm] | |
| Screw length | - | [mm] | |
| Drill hole diameter | do | - | [mm] |
| Min. drill hole depth | h1 | - | [mm] |
| Min. bolt penetration | hef | - | [mm] |
Price:
61,50 EUR
19 % VAT incl. excl. Shipping costs
3,08 EUR per piece
