fischer Insulation Holder Termofix B 70 | 100 pieces

Product no.: F008691

The fischer Termofix B is a corrosion-protected screw anchor for fastening pressure-resistant insulation boards in sheet metal up to 1.5 mm thick. The insulation anchor consists of a holding plate made of polypropylene and a pre-assembled drilling screw. The screw is protected against corrosion by a Delta-Seal coating, providing long-term security. The Termofix B is installed with a cordless drill in through-hole installation without pre-drilling. The pre-assembled screw saves time. The screw head is sealed against heat loss with the closure ball. The flexible head compensates for thermally induced tensions and prevents damage.

Advantages

• The pre-assembled screw shortens processing time.
• High corrosion protection of the screw due to the Delta-Seal coating. This means security for years to come.
• The closure ball creates an air column above the screw head. This reduces transmission heat losses.
• The flexible head compensates for thermally induced tensions and prevents damage.
• For very soft insulation materials, combinable with insulation plates DT 90, DT 110, DT 140.

Applications

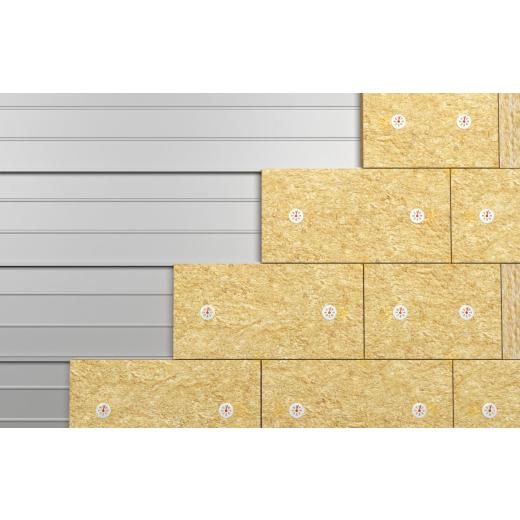

• Attachment of ETICS insulation boards on sheet metal substrates
• Surface-flush installation in ETICS insulation materials, e.g., polystyrene

Materials

• Sheet metal / Trapezoidal sheet up to 1.5 mm

Product features:

Drive	PH2
Drill bit diameter	8 [mm]
Anchor length	70 [mm]
Mounting type	Screw anchor
Max. usable length	50 [mm]
Max. thickness of the component	50 [mm]
Min. anchoring depth	20 [mm]
Screw length	60 [mm]
Plate diameter	60 [mm]



Price:

159,90 EUR

19 % VAT incl. excl. Shipping costs

1,60 EUR per piece
