fischer - Bolt anchor FBZ 10/20 | 25 pieces
Product no.: F543402
Bolt anchor FBZ
The economical solution for all standard fixations
Advantages

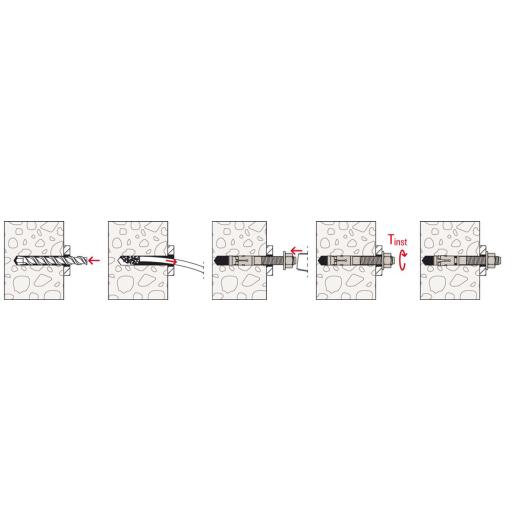

- Secure function and easy installation.
- Two anchoring depths for greater flexibility in application.
- Use of hollow drills and diamond drill bits regulated in the European Technical Assessment ETA.

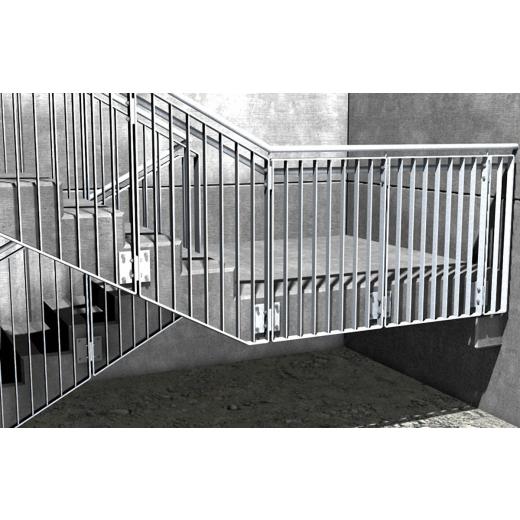

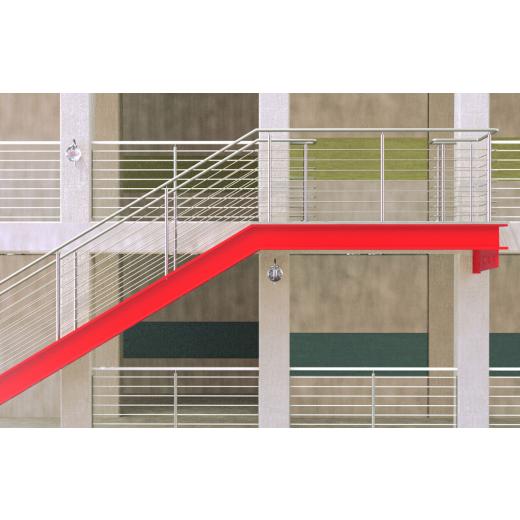

Steel constructions, guard rails, consoles, ladders, cable trays, machines, staircases, façades, timber constructions, gates
Building Materials
Concrete C20/25 to C50/60, cracked and non-cracked • Concrete C12/15
Approvals
ETA-17/0624 • DoP No. 0187
Technical Data:
| Article | FBZ 8/10 | FBZ 10/10 | FBZ 10/20 | FBZ 10/30 | FBZ 12/10 | FBZ 12/20 | FBZ 12/30 | FBZ 16/25 |
| ETA-approval | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Drill Diameter (d0) | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 16 |
| Min. drill hole depth for through fixings (h2) | 70 | 87 | 97 | 107 | 99 | 109 | 119 | 133 |
| Anchor Length (l) | 75 | 95 | 105 | 115 | 110 | 120 | 130 | 148 |
| Max. usable length (tfix) | 10/20 | 10/30 | 20/40 | 30/50 | 10/30 | 20/40 | 30/50 | 25/45 |
| U-Washer Outer-Ø x Thickness | 16 x 1.6 | 20 x 2.0 | 20 x 2.0 | 20 x 2.0 | 24 x 2.5 | 24 x 2.5 | 24 x 2.5 | 30 x 3.0 |
| Thread | M 8 x 38 | M 10 x 53 | M 10 x 63 | M 10 x 73 | M 12 x 61 | M 12 x 71 | M 12 x 81 | M 16 x 84 |
Price:
25,90 EUR
19 % VAT incl. excl. Shipping costs
1,04 EUR per piece
